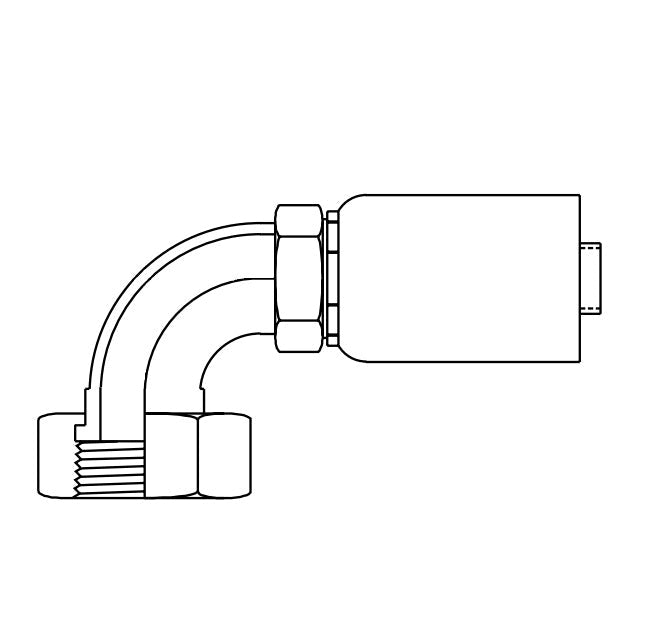

FJ9482-0404S Synflex by Danfoss | Polyon Swage Hose Fitting | Short Drop 90° Elbow | -04 Female O-Ring Face Seal Swivel x -04 Hose Barb | Carbon Steel
Danfoss/Eaton

FJ9482-0404S Synflex by Danfoss | Polyon Swage Hose Fitting | Short Drop 90° Elbow | -04 Female O-Ring Face Seal Swivel x -04 Hose Barb | Carbon Steel

Sale price$158.95

Synflex by Danfoss
Polyon Swage Hose Fitting - Female O-Ring Face Seal Swivel - Short Drop 90° Elbow

(Formerly Eaton Aeroquip)

Product Data:

Brand:
  • Synflex
Shape:

90 Degree

Ends Configuration:
  • 1/4in Female O-Ring Face Seal
  • 1/4in Hose Barb
Carbon Steel
Part Number 		Terminal End Thread Hose Size A Cut Off
Factor
D		 EØ H Hex 1 Hex 2
Dash Size DN Dash Size mm in mm in mm in mm in in in
FJ9482-0404S -04 9/16-18 6 -04 54,6mm 2.15" 31,8mm 1.25" 3,8mm 0.15" 20,8mm 0.82" 0.69" 0.62"
FJ9482-0606S -06 11/16-16 10 -06 68,1mm 2.68" 31,5mm 1.24" 6,1mm 0.24" 22,9mm 0.90" 0.81" 0.75"
FJ9482-0808S -08 13/16-16 12 -08 78,7mm 3.10" 37,1mm 1.46" 9,4mm 0.37" 29,2mm 1.15" 0.94" 0.88"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
