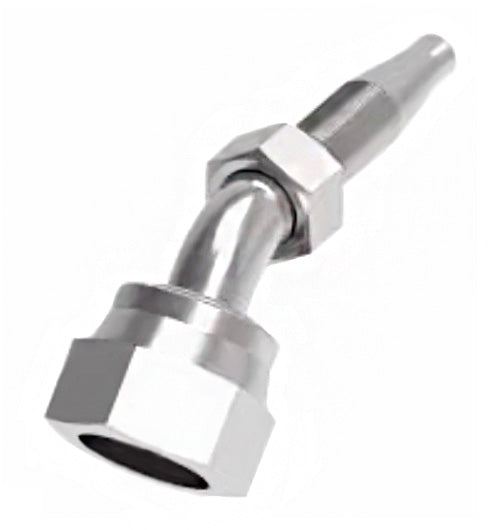

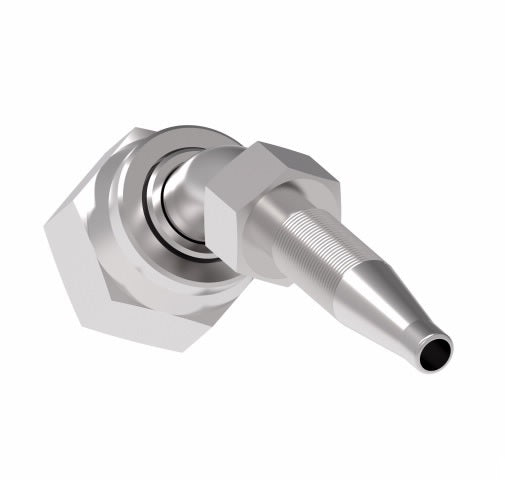

FJ8733-1212S Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
FJ8733-1212S Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
FJ8733-1212S Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel

FJ8733-1212S Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel

Sale price$94.22

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female O-Ring Face Seal Swivel - 45° Elbow
Buy More, Save More!
Quantity Price Each
5–19 $88.57
20–59 $80.09
60+ $70.67
Discounts applied in cart/checkout.

Product Data:

Shape:

45 Degree

Ends Configuration:
  • 3/4in Female O-Ring Face Seal
  • 3/4in Reusable Hose End
Material(s):
  • Steel
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash H
- - 1RA4 9/16-18 -04 2.48" 1.58" 0.17" 0.41"
- - 1RA6 11/16-16 -06 2.79" 1.82" 0.26" 0.43"
1RA8FRA8 FJ8733-0808S 1RA8 13/16-16 -08 3.28" 1.91" 0.38" 0.59"
1RA12FRA12 FJ8733-1212S 1RA12 1-3/16-12 -12 4.15" 2.40" 0.61" 0.83"
1RA16FRA16 FJ8733-1616S 1RA16 1-7/16-12 -16 4.76" 2.51" 0.81" 0.94"
