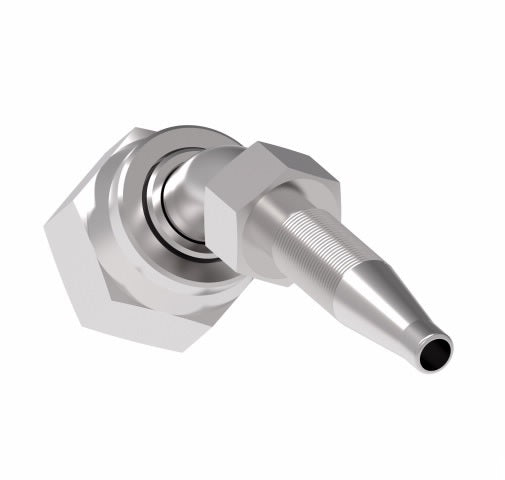

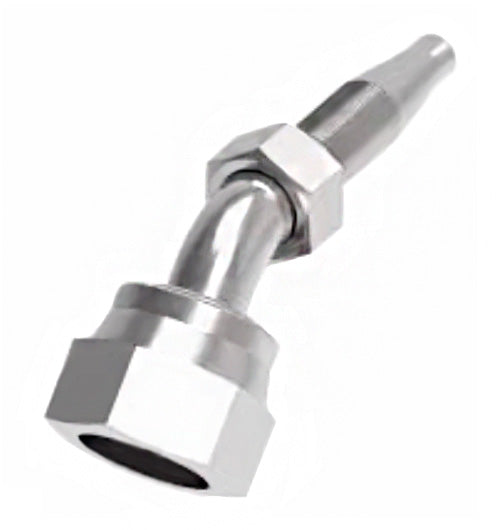

FJ8733-0808S Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
FJ8733-0808S Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
FJ8733-0808S Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

FJ8733-0808S Weatherhead by Danfoss | Female ORS Swivel 45° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

Sale price$84.56

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female O-Ring Face Seal Swivel - 45° Elbow
Buy More, Save More!
Quantity Price Each
10–39 $79.49
40–79 $71.88
80+ $63.42
Discounts applied in cart/checkout.

Product Data:

Shape:

45 Degree

Ends Configuration:
  • 1/2in Female O-Ring Face Seal
  • 1/2in Reusable Hose End
Material(s):
  • Steel
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash H
- - 1RA4 9/16-18 -04 2.48" 1.58" 0.17" 0.41"
- - 1RA6 11/16-16 -06 2.79" 1.82" 0.26" 0.43"
1RA8FRA8 FJ8733-0808S 1RA8 13/16-16 -08 3.28" 1.91" 0.38" 0.59"
1RA12FRA12 FJ8733-1212S 1RA12 1-3/16-12 -12 4.15" 2.40" 0.61" 0.83"
1RA16FRA16 FJ8733-1616S 1RA16 1-7/16-12 -16 4.76" 2.51" 0.81" 0.94"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
