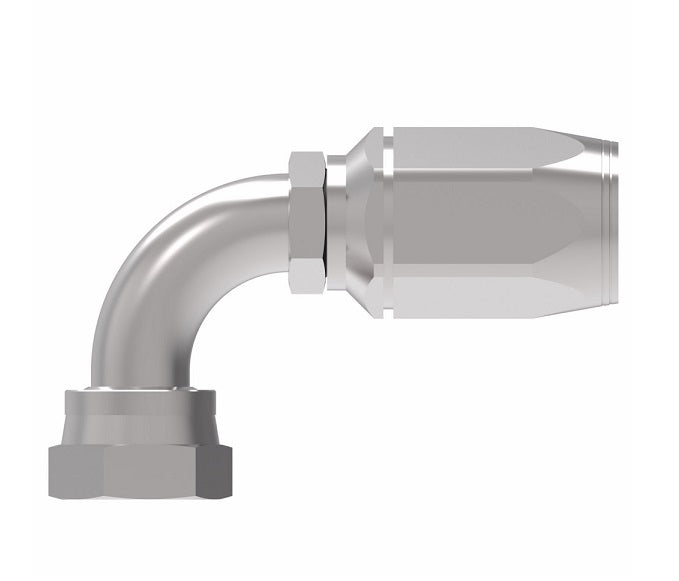

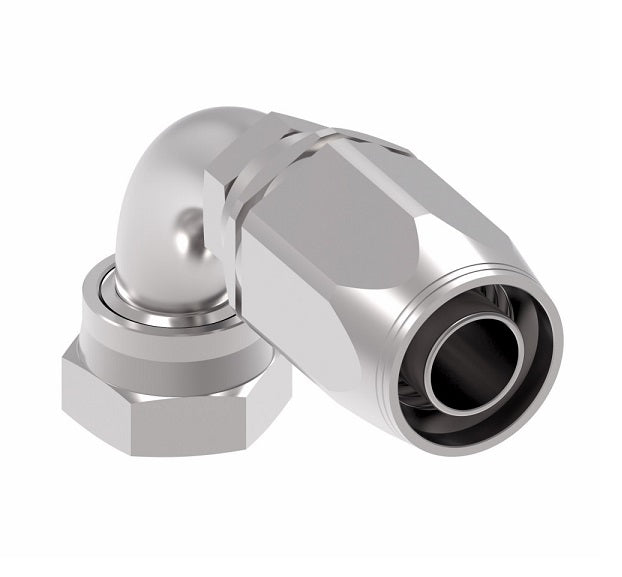

FJ7346-0606S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FJ Series | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel
FJ7346-0606S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FJ Series | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel
FJ7346-0606S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FJ Series | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel

FJ7346-0606S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FJ Series | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel

Sale price$109.92
Buy more, save moreDiscounts applied in cart/checkout.
Technical Info:
Note:
  • For use with GH793 hose ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size "T" Thread A D EØ H
FJ7346-0606S -06 11/16-16 2.72" 1.38" 0.26" 0.90"
FJ7346-0808S -08 13/16-16 3.03" 1.52" 0.38" 1.15"

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/8in Female O-Ring Face Seal
  • 3/8in Reusable Hose End
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
