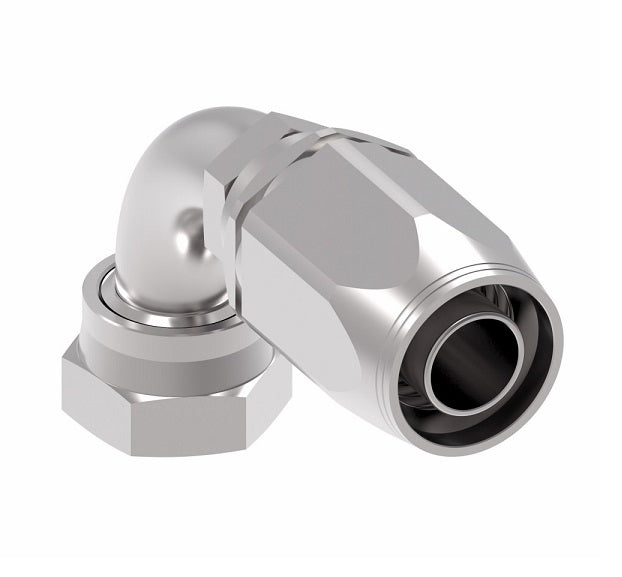

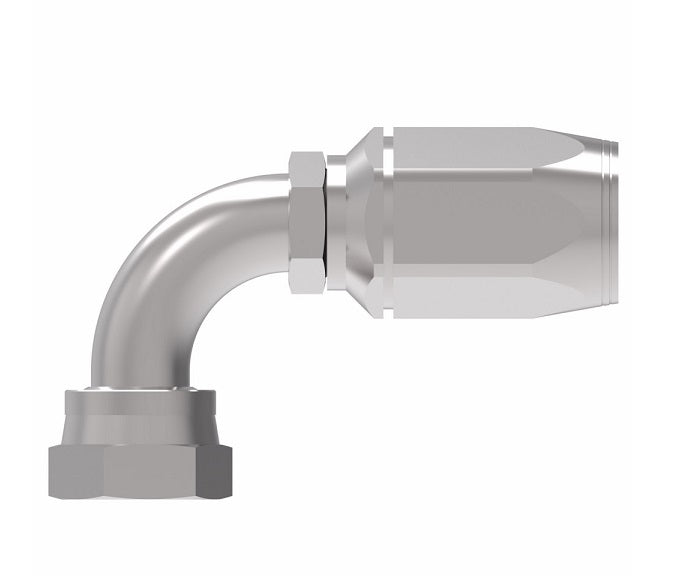

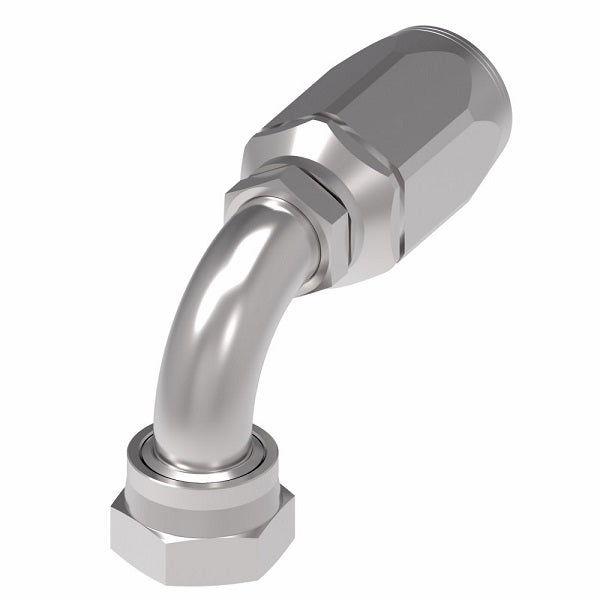

FJ7346-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
FJ7346-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
FJ7346-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

FJ7346-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

Sale price$104.02

Aeroquip® by Danfoss
100R2 TTC Reusable Hose Fitting - FJ Series - Female O-Ring Face Seal (ORS) Swivel Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $97.78
20–59 $88.42
60+ $78.02
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/2in Female O-Ring Face Seal
  • 1/2in Reusable Hose End
Material(s):
  • Steel
Technical Info:
Note:
  • For use with GH793 hose ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size "T" Thread A D EØ H
FJ7346-0606S -06 11/16-16 2.72" 1.38" 0.26" 0.90"
FJ7346-0808S -08 13/16-16 3.03" 1.52" 0.38" 1.15"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
