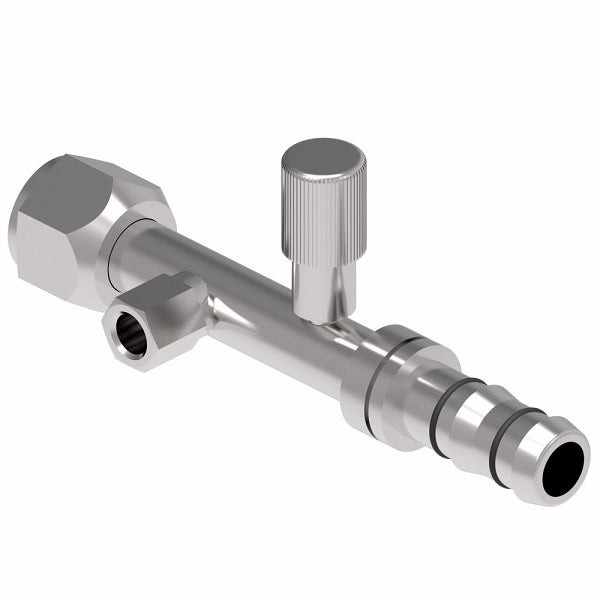

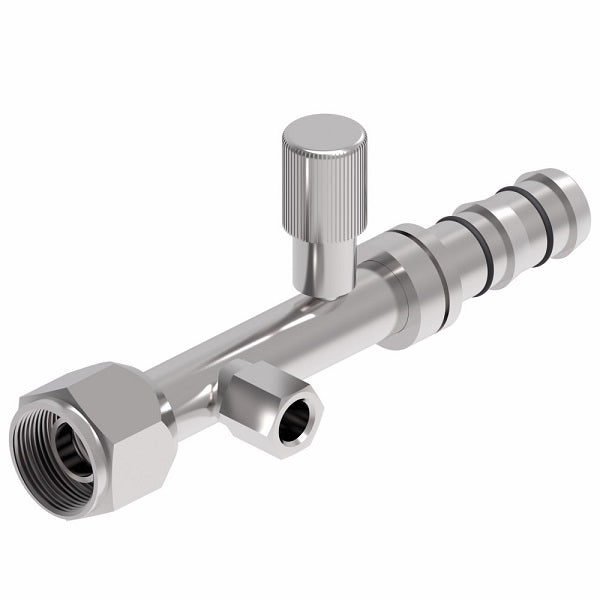

FJ3363-02-0810S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a High Side Port & Female Switch Connection (1/8-27 thd) | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -10 Hose Barb | Steel
FJ3363-02-0810S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a High Side Port & Female Switch Connection (1/8-27 thd) | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -10 Hose Barb | Steel
FJ3363-02-0810S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a High Side Port & Female Switch Connection (1/8-27 thd) | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -10 Hose Barb | Steel

FJ3363-02-0810S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a High Side Port & Female Switch Connection (1/8-27 thd) | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -10 Hose Barb | Steel

Sale price$93.06
Buy more, save moreDiscounts applied in cart/checkout.
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3363-02-0810S* 3/4-16 -10 5.54" 3.62" 0.63" 0.88" FF14173 22546-13 FF90178-13
FJ3363-03-0808S* 3/4-16 -08 5.16" 3.62" 0.63" 0.88" FF14172 22546-13 FF90178-13

*Made to order

Additional Product Data:

Brand:
  • E-Z Clip
Shape:

Straight

Ends Configuration:
  • 1/2in Female O-Ring Short Pilot
  • 5/8in Hose Barb

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
