FF90178-13 Aeroquip by Danfoss | O-Ring for Bump Tube O-Ring Seal and O-Ring Pilot Fitting | -08 O-Ring Pilot Dash Size | Green HNBR
Minimum Order Quantity: 10 Units
Aeroquip® by Danfoss

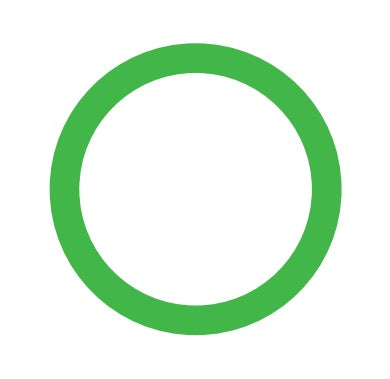

O-Ring for Bump Tube O-Ring Seal and O-Ring Pilot Fitting - Green HNBR
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.47 |
| 40–79 | $1.33 |
| 80+ | $1.17 |
Discounts applied in cart/checkout.
Product Data:
 |
 |
||||||
|---|---|---|---|---|---|---|---|
|
Material: Chloroprene (Neoprene) Durometer: 70 Temperature: -65°F to +300°F Color: Black |
Material: HNBR Durometer: 70 Temperature: -25°F to +300°F Color: Green |
||||||
| Part Number | O-Ring Pilot Dash Size | A | E | Part Number | O-Ring Pilot Dash Size | A | E |
| 22546-11 | -06 | 0.301" | 0.07" | FF90178-11 | -06 | 0.301" | 0.0625" |
| 22546-13 | -08 | 0.426" | 0.07" | FF90178-13 | -08 | 0.426" | 0.0625" |
| 22546-15 | -10 | 0.551" | 0.07" | FF90178-15 | -10 | 0.551" | 0.0625" |
| 22546-17 | -12 | 0.676" | 0.07" | FF90178-17 | -12 | 0.676" | 0.0625" |
