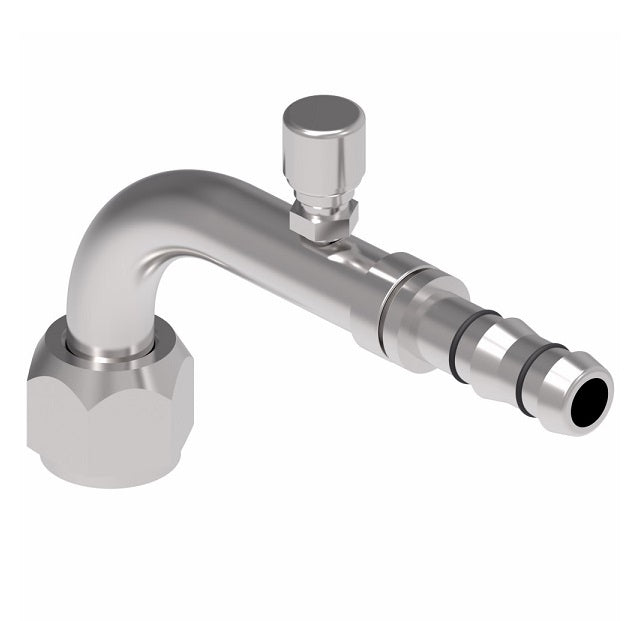

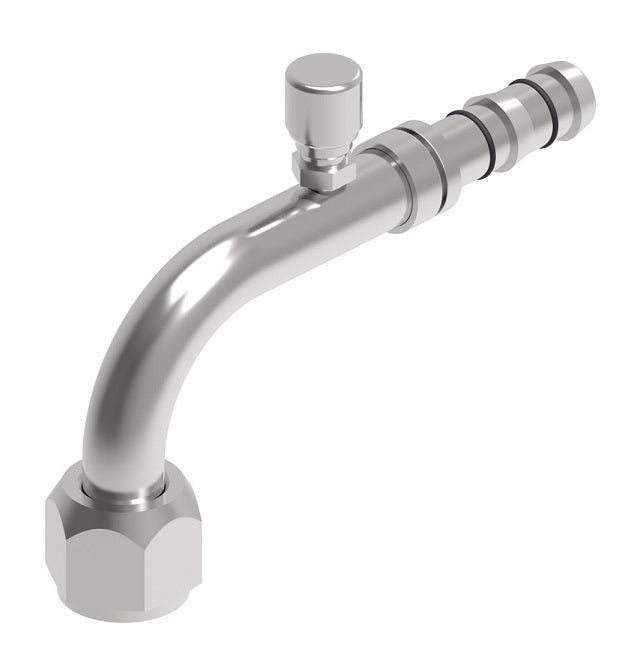

FJ3289-03-0606S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) with Charge Port (7/16-20 thd) | A/C Refrigeration Fitting | -06 Female O-Ring Long Pilot x -06 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Long Pilot) with Charge Port (7/16-20 thd) - 90° Elbow
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $53.56 |
| 40–79 | $48.43 |
| 80+ | $42.74 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | F Ref. | H Ref. | Ref. |
Clip & Cage Kit (Required) |
O-Ring Options | |
| Neoprene | Green HNBR | |||||||||
| FJ3289-03-0606S | 5/8-18 | -06 | 4.35" | 2.82" | 0.69" | 1.35" | 0.75" | FF14171 | 22546-11 | FF90178-11 |
| FJ3289-01-0808S | 3/4-16 | -08 | 4.61" | 2.59" | 0.69" | 1.62" | 0.88" | FF14172 | 22546-13 | FF90178-13 |
| FJ3289-02-1010S | 7/8-14 | -10 | 4.8" | 2.77" | 0.63" | 1.93" | 1.06" | FF14173 | 22546-15 | FF90178-15 |
| FJ3289-04-0810S | 3/4-16 | -10 | 4.62" | 2.59" | 0.69" | 1.62" | 0.88" | FF14173 | 22546-13 | FF90178-13 |
| FJ3289-05-1012S | 7/8-14 | -12 | 4.82" | 2.77" | 0.63" | 1.93" | 1.06" | FF14174 | 22546-15 | FF90178-15 |
