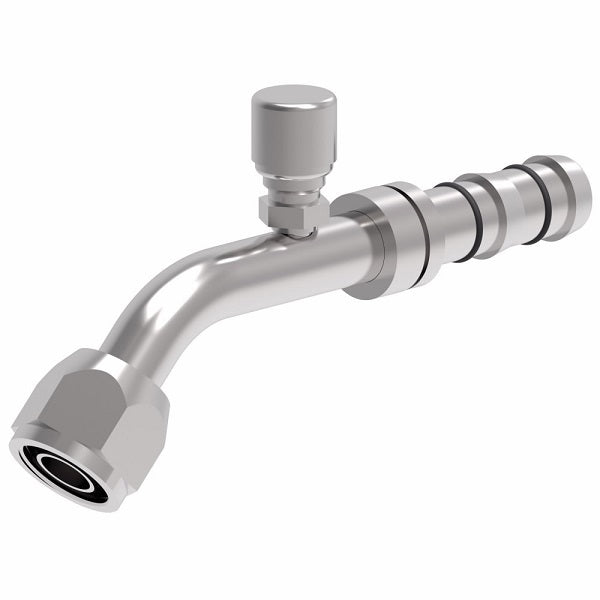

FJ3230-01-0810S E-Z Clip System by Danfoss | Female O-Ring 45° Elbow (Long Pilot) with Switch Port (7/16-20 thd) | A/C Refrigeration Fitting | -08 Female O-Ring Long Pilot x -10 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring 45° Elbow (Long Pilot) with Switch Port (7/16-20 thd) - 45° Elbow
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $96.46 |
| 20–59 | $87.23 |
| 60+ | $76.97 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | F Ref. | H Ref. | Ref. |
Clip & Cage Kit (Required) |
O-Ring Options | |
| Neoprene | Green HNBR | |||||||||
| FJ3230-01-0810S | 3/4-16 | -10 | 4.61" | 3.06" | 0.63" | 0.80" | 0.88" | FF14173 | 22546-13 | FF90178-13 |
| FJ3230-02-1012S | 7/8-16 | -12 | 4.73" | 3.15" | 0.63" | 0.89" | 1.06" | FF14174 | 22546-15 | FF90178-15 |
| FJ3230-03-0808S | 3/4-16 | -08 | 4.43" | 4.93" | 0.63" | 0.73" | 0.88" | FF14172 | 22546-13 | FF90178-13 |
| FJ3230-04-1010S | 7/8-14 | -10 | 5.00" | 3.45" | 0.63" | 1.19" | 1.06" | FF14173 | 22546-15 | FF90178-15 |
| FJ3230-05-1016S | 7/8-14 | -16 | 4.88" | 3.15" | 0.63" | 0.89" | 1.06" | FF14401 | 22546-15 | FF90178-15 |
