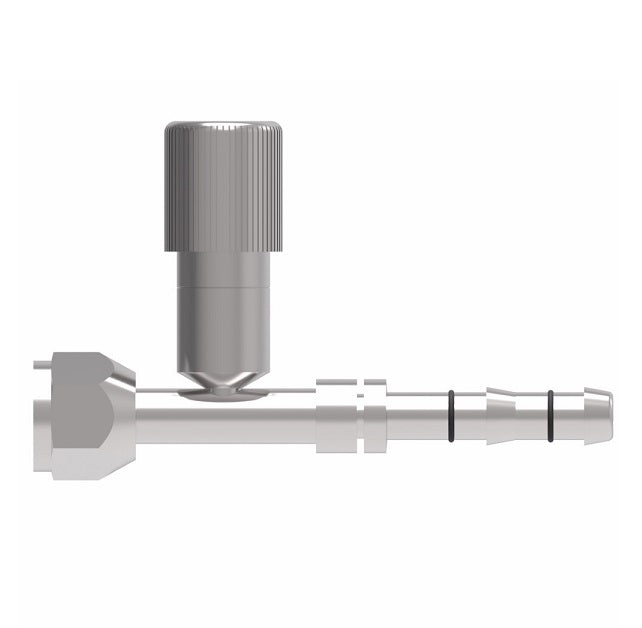

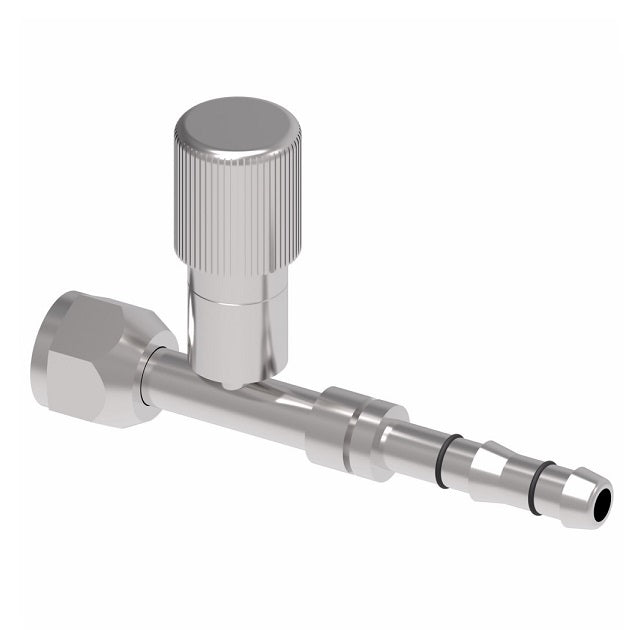

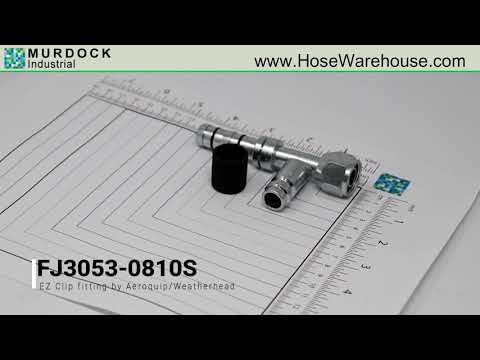

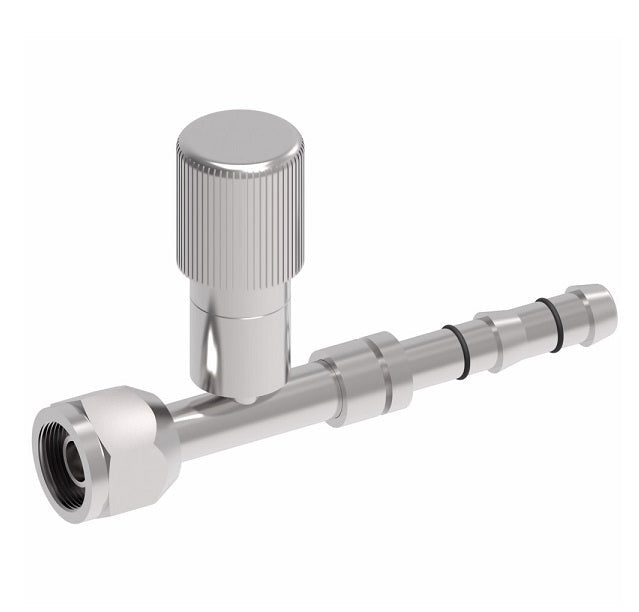

FJ3053-0810S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -10 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring Straight (Short Pilot) with R134a High Side Port - Straight
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $69.26 |
| 40–79 | $62.63 |
| 80+ | $55.26 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | F Ref. | Ref. |
Clip & Cage Kit (Required) |
O-Ring Options | |
| Neoprene | Green HNBR | ||||||||
| FJ3053-0606S | 5/8-18 | -06 | 3.91" | 2.10" | 0.63" | 0.75" | FF14171 | 22546-11 | FF90178-11 |
| FJ3053-0806S | 3/4-16 | -06 | 4.06" | 2.26" | 0.63" | 0.88" | FF14171 | 22546-13 | FF90178-13 |
| FJ3053-0808S | 3/4-16 | -08 | 4.09" | 2.16" | 0.63" | 0.88" | FF14172 | 22546-13 | FF90178-13 |
| FJ3053-0810S | 3/4-16 | -10 | 4.09" | 2.16" | 0.63" | 0.88" | FF14173 | 22546-13 | FF90178-13 |
