FF689-24 Aeroquip by Danfoss | Code 62 Split Flange Kit (SAE J518) with Viton O-Ring | Complete Kit | 1-1/2" Flange Size | Steel

FF689-24 Aeroquip by Danfoss | Code 62 Split Flange Kit (SAE J518) with Viton O-Ring | Complete Kit | 1-1/2" Flange Size | Steel

Sale price$48.26

Aeroquip® by Danfoss
SAE Code 62 Split Flange Kit (SAE J518) with Viton O-Ring (Complete Kit)

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $45.36
40–79 $41.02
80+ $36.20
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
Ends Configuration:
  • 1-1/2in Code 61 Flange
Material(s):
  • Steel
Technical Info:
Specifications:
  • O-Ring material: Viton 90 Durometer
  • Temperature range: -15°F to +400°F (-25°C to +205°C)
Note:
  • Note: Code 62 split flange kits cannot be used with Cat flange fittings. Use existing split flanges.

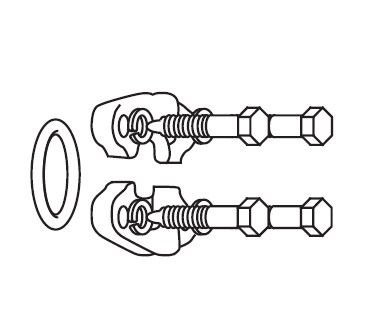

Components Included in Complete Kit:
Complete Kit
Part Number 		Flange Halves
(2 required)
Part Number 		Viton O-Ring
(1 required)
Part Number 		Bolts
(4 required)
Part Number 		Lock washer
(4 required)
Part Number 		Nominal
Flange Size		 A B C Bolt torque
lb.-in
FF689-16 FC3425-16-449 22046-219 FF9442-0728-94 210104-7S 1" 2.25" 1.10" 0.50" 500-600
FF689-20 FC3425-20-449 22046-222 FF9442-0828-94 210104-8S 1-1/4" 2.62" 1.24" 0.60" 750-900
FF689-24 FC3425-24-449 22046-225 FF9442-1036-94 210104-10S 1-1/2" 3.12" 1.44" 0.66" 1400-1600
FF689-32 FC3425-32-449 22046-228 FF9442-1244-94 210104-12S 2" 3.81" 1.76" 0.78" 2400-2600

Viton is a trademark of The Chemours Company FC, LLC.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
