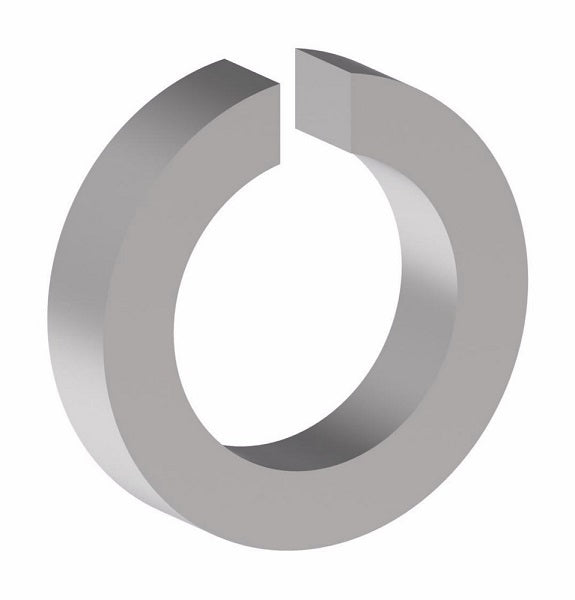

210104-7S Aeroquip by Danfoss | SAE Code 61/Code 62 Lock Washer (1 Washer) | for 1-1/4" Flange Size
Minimum Order Quantity: 10 Units
Aeroquip® by Danfoss
Lock Washer for SAE Code 61 Split Flange Kit (SAE J518)
Important: 4 Lock Washers are required for a complete assembly.
Flange lock washers are not sold as a pack of 4. If you require 4 lock washers, set the quantity below, to 4.
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.70 |
| 40–79 | $1.54 |
| 80+ | $1.36 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Material(s):
| Technical Info: | |||
|---|---|---|---|
| Specifications: | |||
|
 |
|||||
|---|---|---|---|---|---|
| Lock washer (4 required) Part Number |
Nominal Flange Size |
A | B | C | Bolt torque lb.-in |
| 210104-5S | 1/2" | 1.50" | 0.68" | 0.34" | 175-225 |
| 210104-6S | 3/4" | 1.88" | 0.88" | 0.41" | 250-350 |
| 210104-2-6S | 1" | 2.06" | 1.04" | 0.41" | 325-425 |
| 210104-7S | 1-1/4" | 2.31" | 1.18" | 0.48" | 425-550 |
| 210104-8S | 1-1/2" | 2.75" | 1.40" | 0.53" | 550-700 |
| 210104-8S | 2" | 3.06" | 1.68" | 0.53" | 650-800 |
| 210104-8S | 2-1/2" | 3.50" | 2.00" | 0.53" | 950-1100 |
| 210104-10S | 3" | 4.19" | 2.44" | 0.66" | 1650-1800 |
