FD14-1204-06 Weatherhead by Danfoss | FLOCS Quick Disconnect Oil Drain Coupling | FD14 Series | Molded Rubber Cap | For 3/8" Body Size Plugs
Minimum Order Quantity: 5 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Body Size | Max. Operating Pressure | Min. Burst Pressure Connected |
Vacuum Connected Only |
Rated Flow | |||
|---|---|---|---|---|---|---|---|
| 3/8" | 3.5 bar | 50 psi | 7.0 bar | 200 psi | 28 in/Hg | 12 lpm | 3 gpm |
 |
 |
|||||
|---|---|---|---|---|---|---|

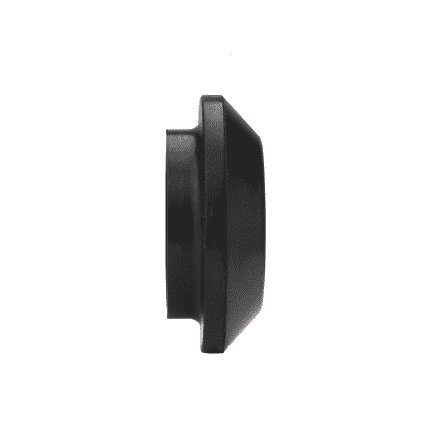

Molded Rubber Cap (Figure 1) |
Cap (Figure 2) |
|||||
| FD14 Series | Caps | ||||||
| Part Number | Cap Type | Body Size | Figure | Dimensions | ||
| A | B | |||||
| FD14-1204-06 | Molded Rubber Cap | 3/8" | 1 | 0.519" (13.2mm) |
1.40" (35.6mm) |
|
| FD14-1210-06 | Aluminum Cap | 3/8" | 2 | 0.726" (18.4mm) |
1.25" (31.8mm) |
|
Additional Product Data:
Brand:
Series:
Shape:
No Orientation
Material(s):
