FD14-1210-06 Weatherhead by Danfoss | FLOCS Quick Disconnect Oil Drain Coupling | FD14 Series | Cap Only | For 3/8" Body Size Plugs | Brass
Hansen® by Danfoss
FLOCS Oil Drain Coupling Cap | FD14 Series
Danfoss' FD14 Drain Coupling is designed to serve as a drain port for use with Danfoss' FLOCS (Fast Lube Oil Change System) as well as providing a purging port for use during pre-fill operations.
The FD14 provides a leak free push to connect operation for improving speed and efficiency for oil evacuation systems.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $15.02 |
| 40–79 | $13.58 |
| 80+ | $11.99 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
No Orientation
Material(s):
| Body Size | Max. Operating Pressure | Min. Burst Pressure Connected |
Vacuum Connected Only |
Rated Flow | |||
|---|---|---|---|---|---|---|---|
| 3/8" | 3.5 bar | 50 psi | 7.0 bar | 200 psi | 28 in/Hg | 12 lpm | 3 gpm |
 |
 |
|||||
|---|---|---|---|---|---|---|
Molded Rubber Cap (Figure 1) |
Cap (Figure 2) |
|||||
| FD14 Series | Caps | ||||||
| Part Number | Cap Type | Body Size | Figure | Dimensions | ||
| A | B | |||||
| FD14-1204-06 | Molded Rubber Cap | 3/8" | 1 | 0.519" (13.2mm) |
1.40" (35.6mm) |
|

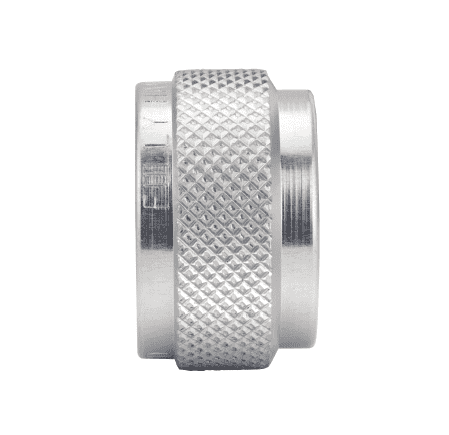

| FD14-1210-06 | Aluminum Cap | 3/8" | 2 | 0.726" (18.4mm) |
1.25" (31.8mm) |
|
