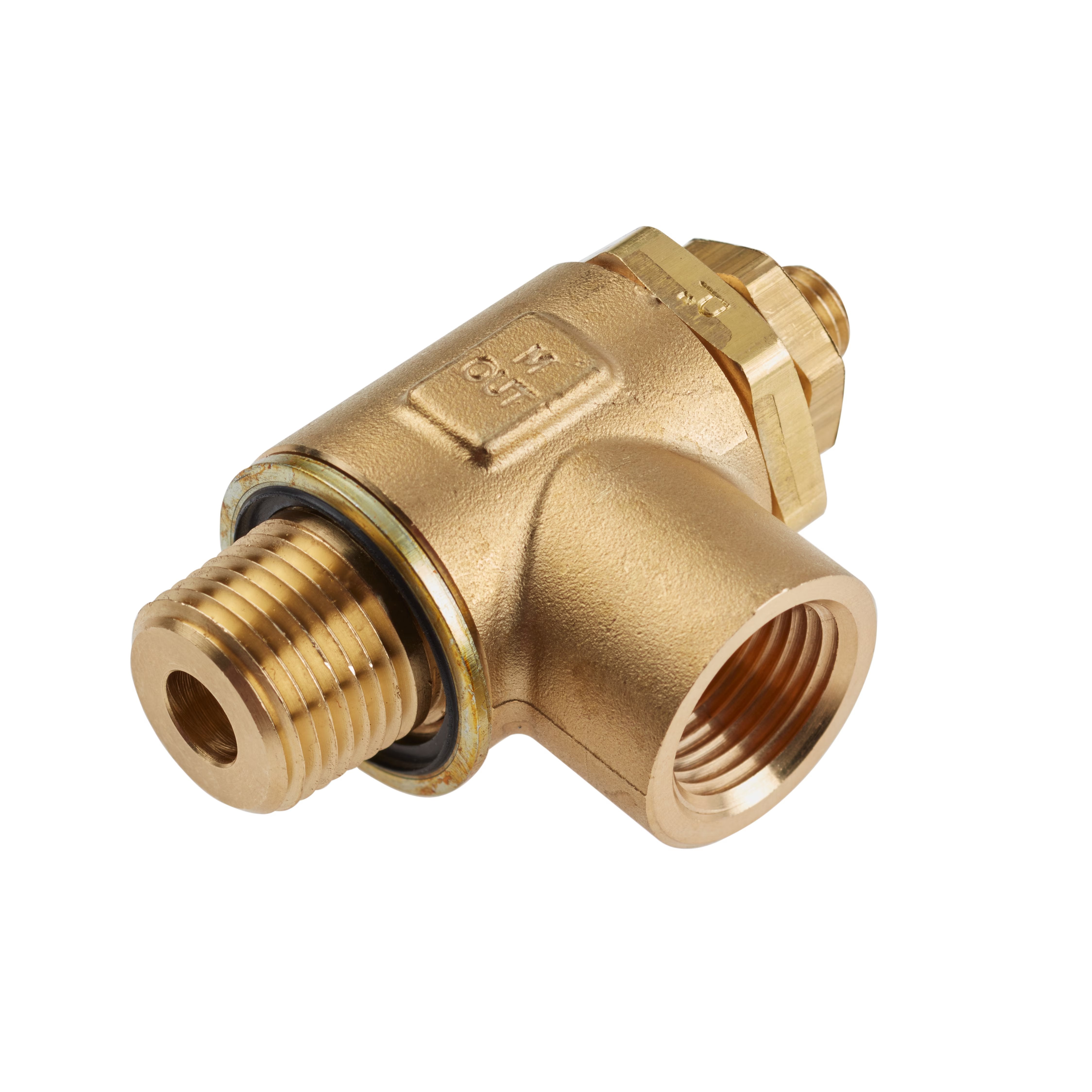

FC703-8G by Parker | Threaded Port Meter Out Metal Flow Control | 1/2" Female NPT x 1/2" Male BSPP Thread | 1-1/8" Hex | 2.72" Length | 90° Elbow | Brass

FC703-8G by Parker | Threaded Port Meter Out Metal Flow Control | 1/2" Female NPT x 1/2" Male BSPP Thread | 1-1/8" Hex | 2.72" Length | 90° Elbow | Brass

Sale price$84.05

by Parker Hannifin
Brass Flow Controls:FC703 Threaded Port Meter Out Metal Flow Control – BSPP
Buy More, Save More!
Quantity Price Each
20–29 $79.01
30–59 $71.44
60+ $63.04
Discounts applied in cart/checkout.

Product Data:

Series:
  • FC703 Series
Shape:

90° Elbow

Ends Configuration:
  • 1/2in Female NPT
  • 1/2in Male BSPP
Product Features:
  • Controls the speed of a pneumatic actuator
  • All brass Construction
  • Allen wrench adjusting screw
  • NPT and BSPP threads
  • Threaded and Push-to-Connect bodies
  • UL94 V-0 Flame Resistance Standard
  • Silicone Free
Markets:
  • Factory/Process Automation
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics Welding
  • End-of-Arm Tooling
  • Factory Automation
  • Automotive Assembly
  • Packaging
  • etc.
Pressure Range: 15 to 150 psi (1.0 to 10.34 bar)
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Polyethylene
  • 95FR
  • Polyurethane 95 Durometer Shore A
  • Semi-rigid Nylon
  • FEP Fluoropolymer
Part Number BSPP Hex 1 Hex 2 H Open H Closed L
FC703-2G 1/8" 7/16" 5/8" 1.84" 1.70" .78"
FC703-4G 1/4" 5/8" 15/16" 2.52" 2.34" 1.05"
FC703-6G 3/8" 5/8" 15/16" 2.44" 2.29" 1.20"
FC703-8G 1/2" 13/16" 1-1/8" 2.72" 2.60" 1.55"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
