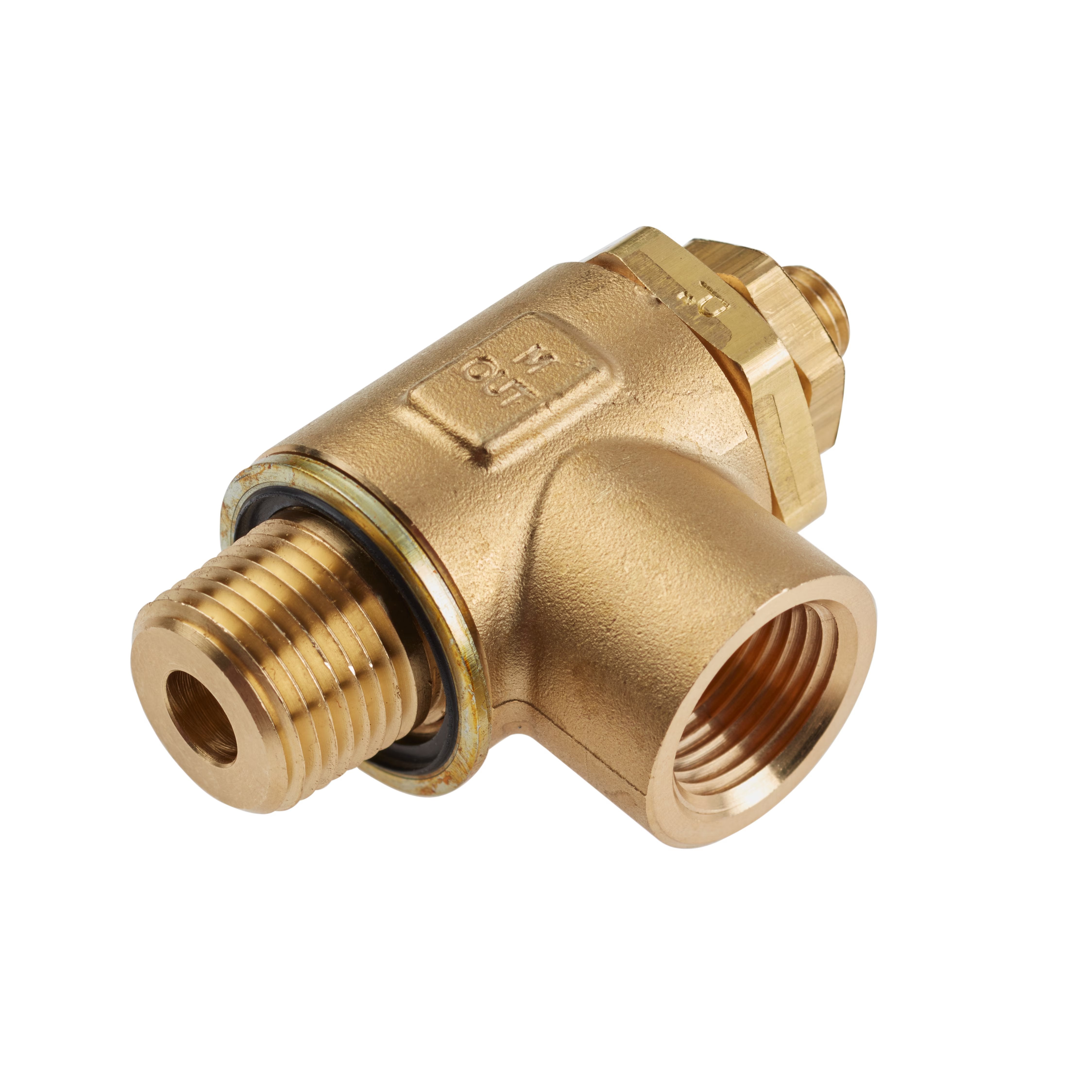

FC703-4G by Parker | Threaded Port Meter Out Metal Flow Control | 1/4" Female NPT x 1/4" Male BSPP Thread | 15/16" Hex | 2.52" Length | 90° Elbow | Brass

FC703-4G by Parker | Threaded Port Meter Out Metal Flow Control | 1/4" Female NPT x 1/4" Male BSPP Thread | 15/16" Hex | 2.52" Length | 90° Elbow | Brass

Sale price$52.91

by Parker Hannifin
Brass Flow Controls:FC703 Threaded Port Meter Out Metal Flow Control – BSPP
Buy More, Save More!
Quantity Price Each
20–39 $49.74
40–79 $44.97
80+ $39.68
Discounts applied in cart/checkout.

Product Data:

Series:
  • FC703 Series
Shape:

90° Elbow

Ends Configuration:
  • 1/4in Female NPT
  • 1/4in Male BSPP
Product Features:
  • Controls the speed of a pneumatic actuator
  • All brass Construction
  • Allen wrench adjusting screw
  • NPT and BSPP threads
  • Threaded and Push-to-Connect bodies
  • UL94 V-0 Flame Resistance Standard
  • Silicone Free
Markets:
  • Factory/Process Automation
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics Welding
  • End-of-Arm Tooling
  • Factory Automation
  • Automotive Assembly
  • Packaging
  • etc.
Pressure Range: 15 to 150 psi (1.0 to 10.34 bar)
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Polyethylene
  • 95FR
  • Polyurethane 95 Durometer Shore A
  • Semi-rigid Nylon
  • FEP Fluoropolymer
Part Number BSPP Hex 1 Hex 2 H Open H Closed L
FC703-2G 1/8" 7/16" 5/8" 1.84" 1.70" .78"
FC703-4G 1/4" 5/8" 15/16" 2.52" 2.34" 1.05"
FC703-6G 3/8" 5/8" 15/16" 2.44" 2.29" 1.20"
FC703-8G 1/2" 13/16" 1-1/8" 2.72" 2.60" 1.55"
