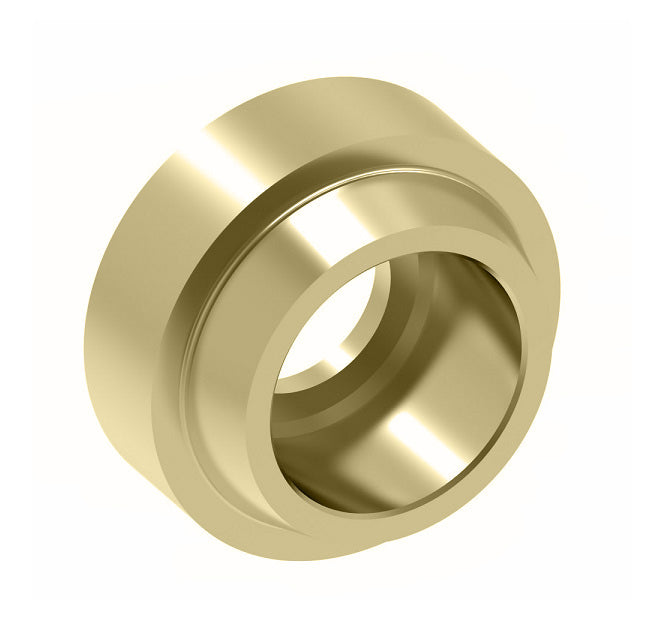

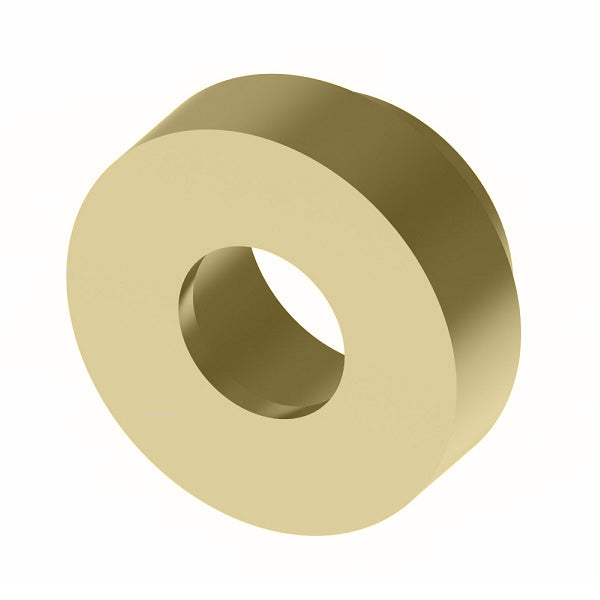

FC1229-1414B Aeroquip by Danfoss | ORS-BR Shoulder Internal Braze Adapter | -14 O-Ring Face Seal x -14 Braze End | Brass
FC1229-1414B Aeroquip by Danfoss | ORS-BR Shoulder Internal Braze Adapter | -14 O-Ring Face Seal x -14 Braze End | Brass
FC1229-1414B Aeroquip by Danfoss | ORS-BR Shoulder Internal Braze Adapter | -14 O-Ring Face Seal x -14 Braze End | Brass

FC1229-1414B Aeroquip by Danfoss | ORS-BR Shoulder Internal Braze Adapter | -14 O-Ring Face Seal x -14 Braze End | Brass

Sale price$20.32
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE 520115
Construction:
  • Buna-N O-Rings are standard.
Warning:
  • In applications exceeding +480°F (such as during brazing) order the oil-coated/ non-plated nut by using part number FC1857- Size-186. When plating is heated above +480°F, toxic gases are given off.
Steel Part Number Brass Part Number Tube OD A B F
FC1229-0404S - 0.25" 0.29" 0.25" 0.25"
FC1229-0606S FC1229-0606B 0.38" 0.29" 0.25" 0.38"
FC1229-0808S FC1229-0808B 0.50" 0.42" 0.38" 0.50"
FC1229-1212S FC1229-1212B 0.75" 0.44" 0.38" 0.75"
- FC1229-1414B - - - -
- FC1229-1614B 1.00" 0.56" 0.44" 0.88"
FC1229-2020S - 1.25" 0.56" 0.50" 1.25"
FC1229-2424S - 1.50" 0.56" 0.50" 1.50"

*Danfoss braze counterbores are dimensioned for sized or emeryed tubing. If tubing is used as received, contact Support for appropriate part number.

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 7/8in O-Ring Face Seal
  • 7/8in Braze End
Material(s):
  • Brass

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
