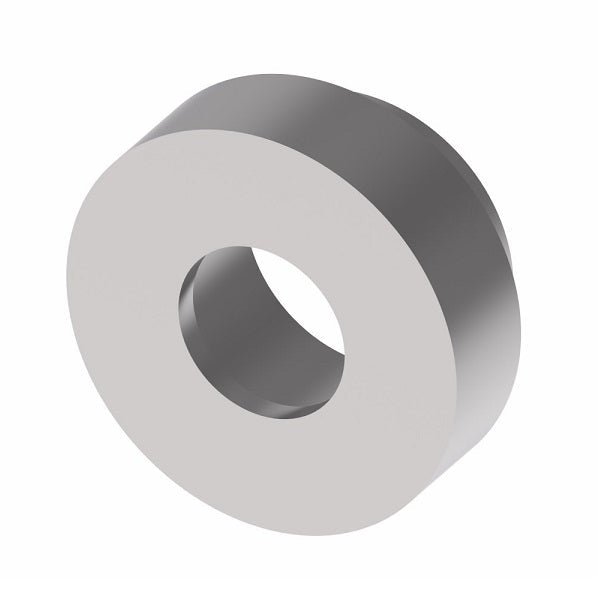

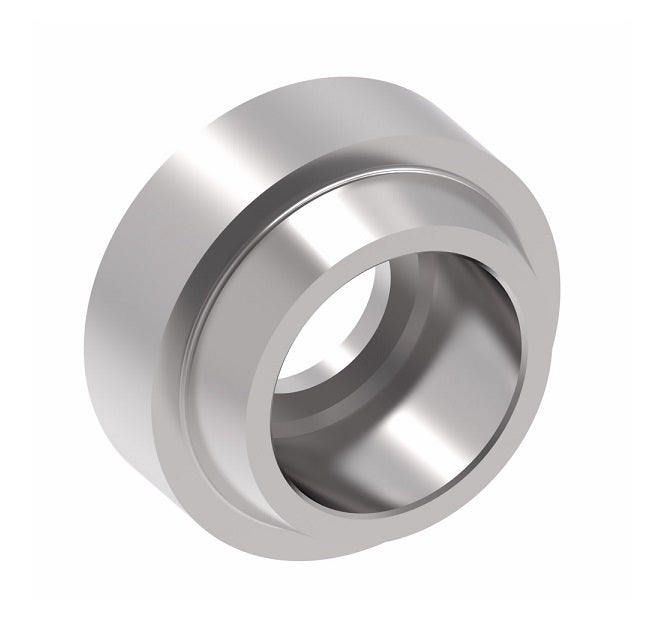

FC1229-0404S Aeroquip by Danfoss | ORS-BR Shoulder Internal Braze Adapter | -04 O-Ring Face Seal x -04 Braze End | Steel
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
ORS-BR Shoulder Internal Braze Adapter
O-Ring Face Seal x Braze End
(Formerly Eaton Aeroquip)
The ORS-TF tube fitting utilizing the ORS-TF nut, ferrule and sleeve can be joined directly to steel tubing to solve your fluid leakage problems. It does not require the time and expense of brazing and provides the advantage of repetitive reuse. It is a compression type fitting that works on a variety of tubing.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $2.35 |
| 40–79 | $2.13 |
| 80+ | $1.88 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Specifications: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
|||
| Warning: | |||
|
 |
|||||
|---|---|---|---|---|---|
| Steel Part Number | Brass Part Number | Tube OD | A | B | F |
| FC1229-0404S | - | 0.25" | 0.29" | 0.25" | 0.25" |
| FC1229-0606S | FC1229-0606B | 0.38" | 0.29" | 0.25" | 0.38" |
| FC1229-0808S | FC1229-0808B | 0.50" | 0.42" | 0.38" | 0.50" |
| FC1229-1212S | FC1229-1212B | 0.75" | 0.44" | 0.38" | 0.75" |
| - | FC1229-1414B | - | - | - | - |
| - | FC1229-1614B | 1.00" | 0.56" | 0.44" | 0.88" |
| FC1229-2020S | - | 1.25" | 0.56" | 0.50" | 1.25" |
| FC1229-2424S | - | 1.50" | 0.56" | 0.50" | 1.50" |
*Danfoss braze counterbores are dimensioned for sized or emeryed tubing. If tubing is used as received, contact Support for appropriate part number.
