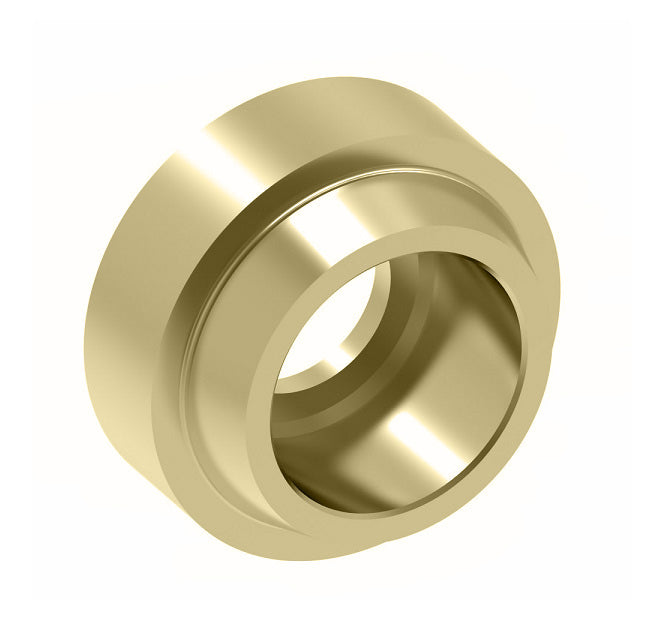

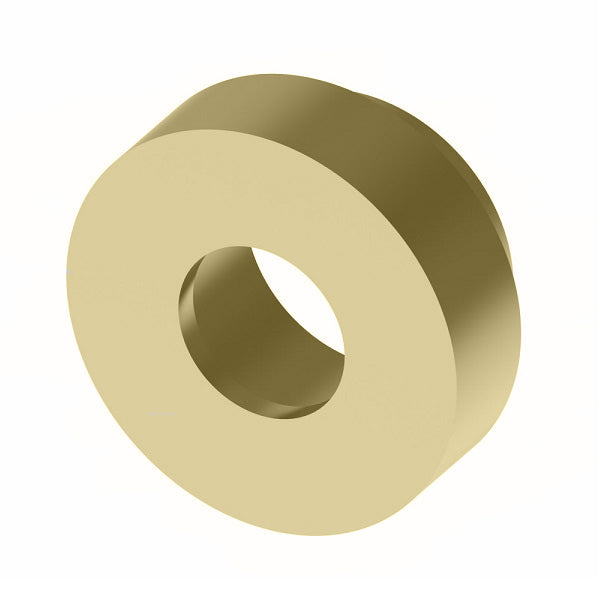

FC1229-1212B Aeroquip by Danfoss | ORS-BR Shoulder Internal Braze Adapter | -12 O-Ring Face Seal x -12 Braze End | Brass
FC1229-1212B Aeroquip by Danfoss | ORS-BR Shoulder Internal Braze Adapter | -12 O-Ring Face Seal x -12 Braze End | Brass
FC1229-1212B Aeroquip by Danfoss | ORS-BR Shoulder Internal Braze Adapter | -12 O-Ring Face Seal x -12 Braze End | Brass

FC1229-1212B Aeroquip by Danfoss | ORS-BR Shoulder Internal Braze Adapter | -12 O-Ring Face Seal x -12 Braze End | Brass

Sale price$28.48
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE 520115
Construction:
  • Buna-N O-Rings are standard.
Warning:
  • In applications exceeding +480°F (such as during brazing) order the oil-coated/ non-plated nut by using part number FC1857- Size-186. When plating is heated above +480°F, toxic gases are given off.
Steel Part Number Brass Part Number Tube OD A B F
FC1229-0404S - 0.25" 0.29" 0.25" 0.25"
FC1229-0606S FC1229-0606B 0.38" 0.29" 0.25" 0.38"
FC1229-0808S FC1229-0808B 0.50" 0.42" 0.38" 0.50"
FC1229-1212S FC1229-1212B 0.75" 0.44" 0.38" 0.75"
- FC1229-1414B - - - -
- FC1229-1614B 1.00" 0.56" 0.44" 0.88"
FC1229-2020S - 1.25" 0.56" 0.50" 1.25"
FC1229-2424S - 1.50" 0.56" 0.50" 1.50"

*Danfoss braze counterbores are dimensioned for sized or emeryed tubing. If tubing is used as received, contact Support for appropriate part number.

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in O-Ring Face Seal
  • 3/4in Braze End
Material(s):
  • Brass

Danfoss (Eaton - Aeroquip)
