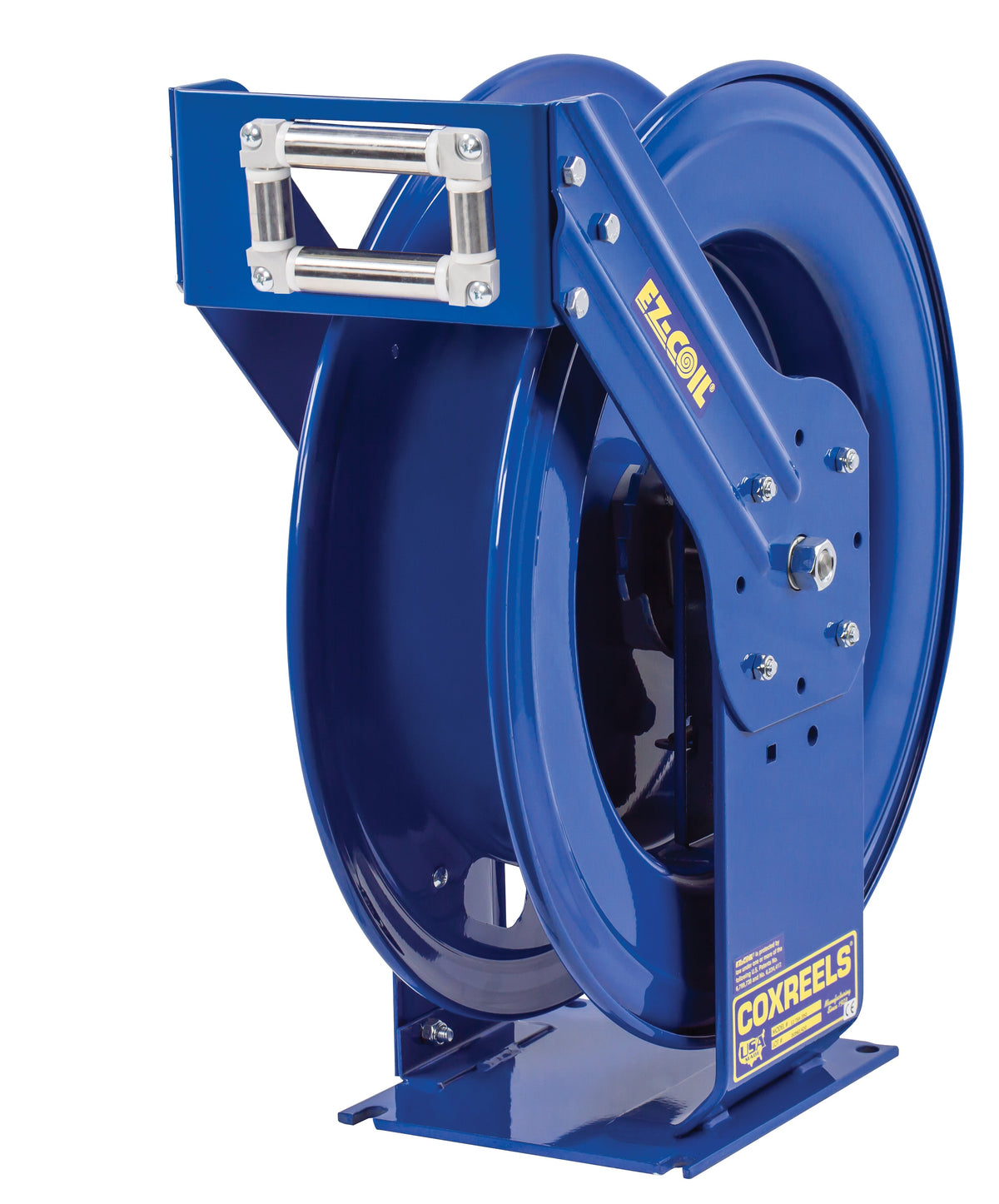

EZ-TSHL-550 by Coxreels | EZ-T Series | 300 PSI EZ-Coil Safety Spring Driven Hose Reel for Air, Water & Oil | 3/4" Hose ID, 3/4" FNPT Inlet | Steel | 50ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
EZ-Coil® hose reel
Coxreels EZ-T Series EZ-Coil® Hose Reels
Steel dual-pedestal EZ-Coil® spring driven hose reels for air, water, oil and lubrication, grease and hydraulics and pressure washing, rated to 5,000 PSI. Made in the U.S.A.
1
What is this product used for?
- 300 PSI models — Air, water, washdown, chemical fluid transfer.
- 1,500–3,000 PSI models — Air, water, oil & lubrication, washdown.
- 4,000–5,000 PSI models — Air, water, oil & lubrication, grease & hydraulics, pressure washing.
2
What are the key specifications?
Construction & Finish
Steel, dual-pedestal
CPC™ powder coat
Swivel
Nitrile seals
Inlet
Female NPT, same size as the hose I.D.
Max Temperature
250°F / 150°F depending on hose
Bearings
1" Permanently Lubricated Precision Bearings
Mounting Holes
Ø0.5"
3
What are the main product features?
- Swivel — 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- EZ-Coil® Equipped — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base — Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ triple axle support
- Multi-Position Guide Arm — Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Disc Diameter | Reel W × H × L (in) |
|---|---|---|---|---|---|
| Low Pressure — PVC hose included | |||||
| EZ-TSH-350 | 3/8" | 50 ft | 300 | 12.5" | 9.375 × 21.25 × 19.5 |
| EZ-TSH-375 | 3/8" | 75 ft | 300 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-TSH-450 | 1/2" | 50 ft | 300 | 12.5" | 9.375 × 21.25 × 19.5 |
| EZ-TSH-475 | 1/2" | 75 ft | 300 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-TSH-535 | 3/4" | 35 ft | 300 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-TSH-550 | 3/4" | 50 ft | 300 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-TSH-3100 | 3/8" | 100 ft | 300 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-TSH-4100 | 1/2" | 100 ft | 300 | 15.75" | 9.375 × 25.5 × 24 |
| Low Pressure — hose not included | |||||
| EZ-TSHL-350 | 3/8" | 35 ft | 300 | 12.5" | 9.375 × 21.25 × 19.5 |
| EZ-TSHL-375 | 3/8" | 75 ft | 300 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-TSHL-450 | 1/2" | 50 ft | 300 | 12.5" | 9.375 × 21.25 × 19.5 |
| EZ-TSHL-475 | 1/2" | 75 ft | 300 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-TSHL-535 | 3/4" | 35 ft | 300 | 24" | 7.875 × 25.5 × 24 |
| EZ-TSHL-550 | 3/4" | 50 ft | 300 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-TSHL-3100 | 3/8" | 100 ft | 300 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-TSHL-4100 | 1/2" | 100 ft | 300 | 15.75" | 9.375 × 25.5 × 24 |
| Medium Pressure — rubber hose included | |||||
| EZ-TMP-450 | 1/2" | 50 ft | 2,500 | 12.5" | 9.375 × 21.25 × 19.5 |
| EZ-TMP-475 | 1/2" | 75 ft | 2,500 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-TMP-550 | 3/4" | 50 ft | 1,500 | 15.75" | 9.375 × 25.5 × 24 |
| Medium Pressure — hose not included | |||||
| EZ-TMP-350 | 3/8" | 50 ft | 3,000 | 12.5" | 9.375 × 21.25 × 19.5 |
| EZ-TMP-375 | 3/8" | 75 ft | 3,000 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-TMPL-350 | 3/8" | 50 ft | 3,000 | 12.5" | 9.375 × 21.25 × 19.5 |
| EZ-TMPL-375 | 3/8" | 75 ft | 3,000 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-TMPL-450 | 1/2" | 50 ft | 2,500 | 12.5" | 9.375 × 21.25 × 19.5 |
| EZ-TMPL-475 | 1/2" | 75 ft | 2,500 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-TMPL-550 | 3/4" | 50 ft | 1,500 | 15.75" | 9.375 × 25.5 × 24 |
| High Pressure — rubber hose included | |||||
| EZ-THP-150 | 1/4" | 50 ft | 5,000 | 12.5" | 9.375 × 21.25 × 19.5 |
| EZ-THP-175 | 1/4" | 75 ft | 5,000 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-THP-350 | 3/8" | 50 ft | 4,000 | 12.5" | 9.375 × 21.25 × 19.5 |
| EZ-THP-375 | 3/8" | 75 ft | 4,000 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-THP-1100 | 1/4" | 100 ft | 5,000 | 15.75" | 9.375 × 25.5 × 24 |
| High Pressure — hose not included | |||||
| EZ-THPL-150 | 1/4" | 50 ft | 5,000 | 12.5" | 9.375 × 21.25 × 19.5 |
| EZ-THPL-175 | 1/4" | 75 ft | 5,000 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-THPL-350 | 3/8" | 50 ft | 4,000 | 12.5" | 9.375 × 25.25 × 19.5 |
| EZ-THPL-375 | 3/8" | 75 ft | 4,000 | 15.75" | 9.375 × 25.5 × 24 |
| EZ-THPL-1100 | 1/4" | 100 ft | 5,000 | 15.75" | 9.375 × 25.5 × 24 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets — fit every model except EZ-TSHL-535 | ||
| 15724 | EZ-Up "I" or "H" Beam Adapter | |
| 15723 | EZ-Up Bracket | |
| MRT-1 | Overhead Mounting Bracket | |
| 15725 | Swing Bracket | |
| 15721 | Swivel Bracket | |
| Inlet connections | ||
| 5153-1.5 | 18" inlet hose | EZ-TSH-350/375/3100; EZ-TSHL-350/375/3100 |
| 5154-1.5 | 18" inlet hose | EZ-TSH-450/475/4100; EZ-TSHL-450/475/4100 |
| 5155-1.5 | 18" inlet hose | EZ-TSH-535; EZ-TSH/TSHL-550 |
| 5224-1.5 | 18" inlet hose | Max PSI 3,000 |
| 5256-1.5 | 18" inlet hose | Max PSI 2,500 |
| 5290-1.5 | 18" inlet hose | Max PSI 1,500 |
| 5304-1.5 | 18" inlet hose | Hose I.D. 1/4" |
| 5336-1.5 | 18" inlet hose | Max PSI 4,000 |
| 208 | 90° inlet elbow (brass) | EZ-TSH-350/375/3100; EZ-TSHL-350/375/3100 |
| 222 | 90° inlet elbow (brass) | EZ-TSH-450/475/4100; EZ-TSHL-450/475 |
| 385 | 90° inlet elbow (brass) | EZ-TSH-535; EZ-TSH/TSHL-550 |
| 2008 | 90° inlet elbow (brass) | EZ-TSHL-4100 |
| 500 | 90° inlet elbow (steel) | EZ-TMP-350/375 |
| 616 | 90° inlet elbow (steel) | Hose I.D. 1/4" |
| 617 | 90° inlet elbow (steel) | Max PSI 4,000 |
| 1671 | 90° inlet elbow (steel) | EZ-TMP-450/475 |
| Hose end | ||
| 131 | Hose/cord stop | Hose I.D. 1/4" |
| 131-3 | Hose/cord stop | Hose I.D. 3/8" |
| 131-4 | Hose/cord stop | Hose I.D. 1/2" |
| 430 | Hose/cord stop | Hose I.D. 3/4" except EZ-TSHL-535 |
| 10759-2 | Quick disconnect | EZ-TSH-350/375/3100; EZ-TSHL-350/375/3100 |
| 237-1 | Spiral hose/cord guard | Hose I.D. 1/4", 3/8" |
| 398-1 | Spiral hose/cord guard | EZ-TMP-450; EZ-TMPL-450/475/550; EZ-TSH-450/475/535/550/4100; EZ-TSHL-450/475/550/4100 |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BVX is -GVX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Hose suffix | |
| -BP | Blue PVC Hose |
| -YP | Yellow PVC Hose |
| -HV | Hi-Vis PVC+Rubber Hybrid Hose |
| -OG | Oil/Grease Resistant |
| -RH | Red EPDM |
| -BH | Black EPDM |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVX | Standard swivel with Viton |
| -BEX | Standard swivel with EPR |
| -BAX | Stainless steel swivel with Nitrile |
| -BBX | Stainless steel swivel with Viton |
| -BCX | Stainless steel swivel with EPR |
| -BGX | BSP swivel with Nitrile |
| -BHX | BSP swivel with Viton |
| -BIX | BSP swivel with EPR |
| -BLX | Stainless steel BSP swivel with Nitrile |
| -BMX | Stainless steel BSP swivel with Viton |
| -BNX | Stainless steel BSP swivel with EPR |
| -BYX | Food grade Brass swivel |
| -BYX | Food grade stainless steel swivel |
| -BZX | Less swivel |
| Other | |
| -BXC | Constant Tension |
| -BXS | Solid Roller Assembly |
| -BXB | Bend Restrictor |
| -BXK / -BXL | Air Tool Kit |
7
Where can I find product documents?
EZ-T Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
