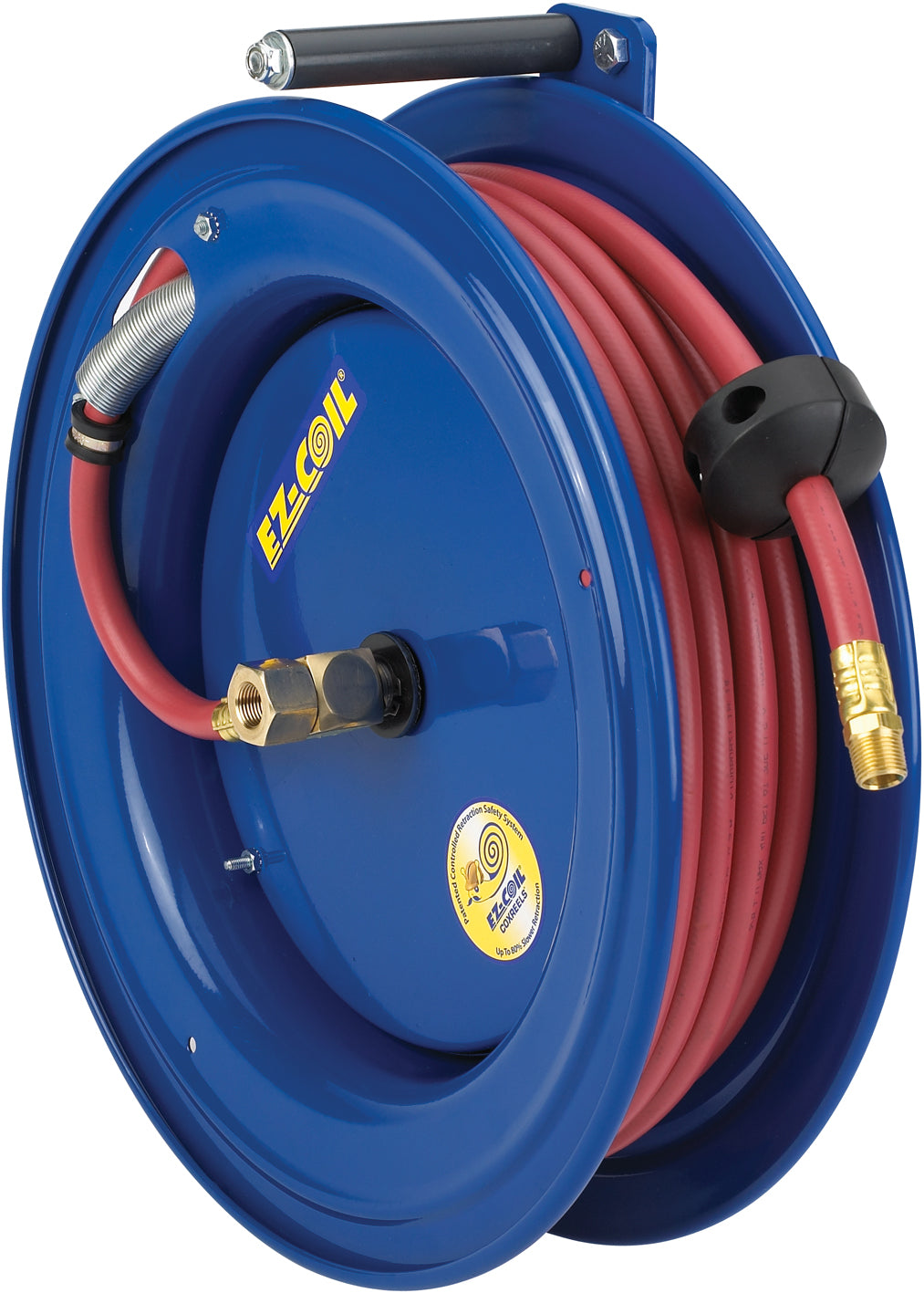

EZ-SR15L-L325 by Coxreels | EZ-S Series | 300 PSI Right Side Mount EZ-Coil Safety Spring Driven Hose Reel for Air & Water | 3/8" Hose ID, 3/8" FNPT Inlet | Steel | 25ft Capacity, Hose Not Included
Coxreels EZ-S Series EZ-Coil® Hose Reels
Steel side-mount EZ-Coil® spring driven hose reels for air, water, washdown and chemical fluid transfer, rated to 300 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Washdown
- Chemical Fluid Transfer
2
What are the key specifications?
Steel, side-mount
Brass 90° full-flow with Nitrile seals
150°F
1" Permanently Lubricated Precision Bearings
CPC™ powder coat
Floor, Wall, Vehicle Mounting
Ø0.5" mounting holes
3
What are the main product features?
- Swivel — Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- EZ-Coil® Equipped — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Side Mount Design — Mount right for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.
- Control Bar — Hose control bar prevents hose from slipping off the disc.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Inlet | Drum Width | Disc Diameter | Reel W × H × L (in) |
|---|---|---|---|---|---|---|---|
| Less hose | |||||||
| EZ-SL13L-L125 | 1/4" | 25 ft | 300 | 1/4" FNPT | 2.88" | 13" | 6 × 14.25 × 13 |
| EZ-SL15L-L135 | 1/4" | 35 ft | 300 | 1/4" FNPT | 2.88" | 13" | 6 × 16.5 × 15.25 |
| EZ-SR13L-L125 | 1/4" | 25 ft | 300 | 1/4" FNPT | 2.88" | 13" | 6 × 14.25 × 13 |
| EZ-SR15L-L135 | 1/4" | 35 ft | 300 | 1/4" FNPT | 2.88" | 13" | 6 × 16.5 × 15.25 |
| EZ-SR15L-L325 | 3/8" | 25 ft | 300 | 3/8" FNPT | 2.88" | 13" | 6 × 16.5 × 15.25 |
| EZ-SR17L-L350 | 3/8" | 50 ft | 300 | 3/8" FNPT | 3.75" | 17" | 5.75 × 18.25 × 17 |
| EZ-SR17L-L430 | 1/2" | 30 ft | 300 | 1/2" FNPT | 3.75" | 17" | 5.75 × 18.25 × 17 |
| PVC | |||||||
| EZ-SL13-L125 | 1/4" | 25 ft | 300 | 1/4" FNPT | 2.88" | 13" | 6 × 14.25 × 13 |
| EZ-SL15-L135 | 1/4" | 35 ft | 300 | 1/4" FNPT | 2.88" | 13" | 6 × 16.5 × 15.25 |
| EZ-SR13-L125 | 1/4" | 25 ft | 300 | 1/4" FNPT | 2.88" | 13" | 6 × 14.25 × 13 |
| EZ-SR15-L135 | 1/4" | 35 ft | 300 | 1/4" FNPT | 2.88" | 13" | 6 × 16.5 × 15.25 |
| EZ-SR15-L325 | 3/8" | 25 ft | 300 | 1/4" FNPT | 2.88" | 13" | 6 × 16.5 × 15.25 |
| EZ-SR17-L350 | 3/8" | 50 ft | 300 | 3/8" FNPT | 3.75" | 17" | 5.75 × 18.25 × 17 |
| EZ-SR17-L430 | 1/2" | 30 ft | 300 | 1/2" FNPT | 3.75" | 17" | 5.75 × 18.25 × 17 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets | ||
| 15726-13 | Dual Side Mount Bracket | EZ-SL13/SL13L/SR13/SR13L-L125 |
| 15726-15 | Dual Side Mount Bracket | EZ-SL15/SL15L/SR15/SR15L-L135; EZ-SR15/SR15L-L325 |
| 15726-17 | Dual Side Mount Bracket | Drum width 3.75" |
| SMB1 | Single Side Mount Bracket | Drum width 2.88" |
| SMB2 | Single Side Mount Bracket | Drum width 3.75" |
Inlet connections — by hose i.d.:
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BVX is -GVX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Hose suffix | |
| -B | Blue PVC Hose |
| -Y | Yellow PVC Hose |
| -OG | Oil/Grease Resistant |
| -RH | Red EPDM |
| -BH | Black EPDM |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVX | Standard swivel with Viton |
| -BEX | Standard swivel with EPR |
| -BAX | Stainless steel swivel with Nitrile |
| -BBX | Stainless steel swivel with Viton |
| -BCX | Stainless steel swivel with EPR |
| -BGX | BSP swivel with Nitrile |
| -BHX | BSP swivel with Viton |
| -BIX | BSP swivel with EPR |
| -BLX | Stainless steel BSP swivel with Nitrile |
| -BMX | Stainless steel BSP swivel with Viton |
| -BNX | Stainless steel BSP swivel with EPR |
| -BYX | Food grade Brass swivel |
| -BYX | Food grade stainless steel swivel |
| -BZX | Less swivel |
| Other | |
| -BXB | Bend Restrictor |
| -BXC | Constant Tension |
| -BXK / -BXL | Air Tool Kit |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing — EZ-S13
Numbered parts breakdown with replacement part numbers for EZ-SL13 and EZ-SR13 reels.
Exploded Parts Drawing — EZ-S15
Numbered parts breakdown with replacement part numbers for EZ-SL15 and EZ-SR15 reels.
Exploded Parts Drawing — EZ-S17
Numbered parts breakdown with replacement part numbers for EZ-SR17 reels.
How is this product sold?
Each.
