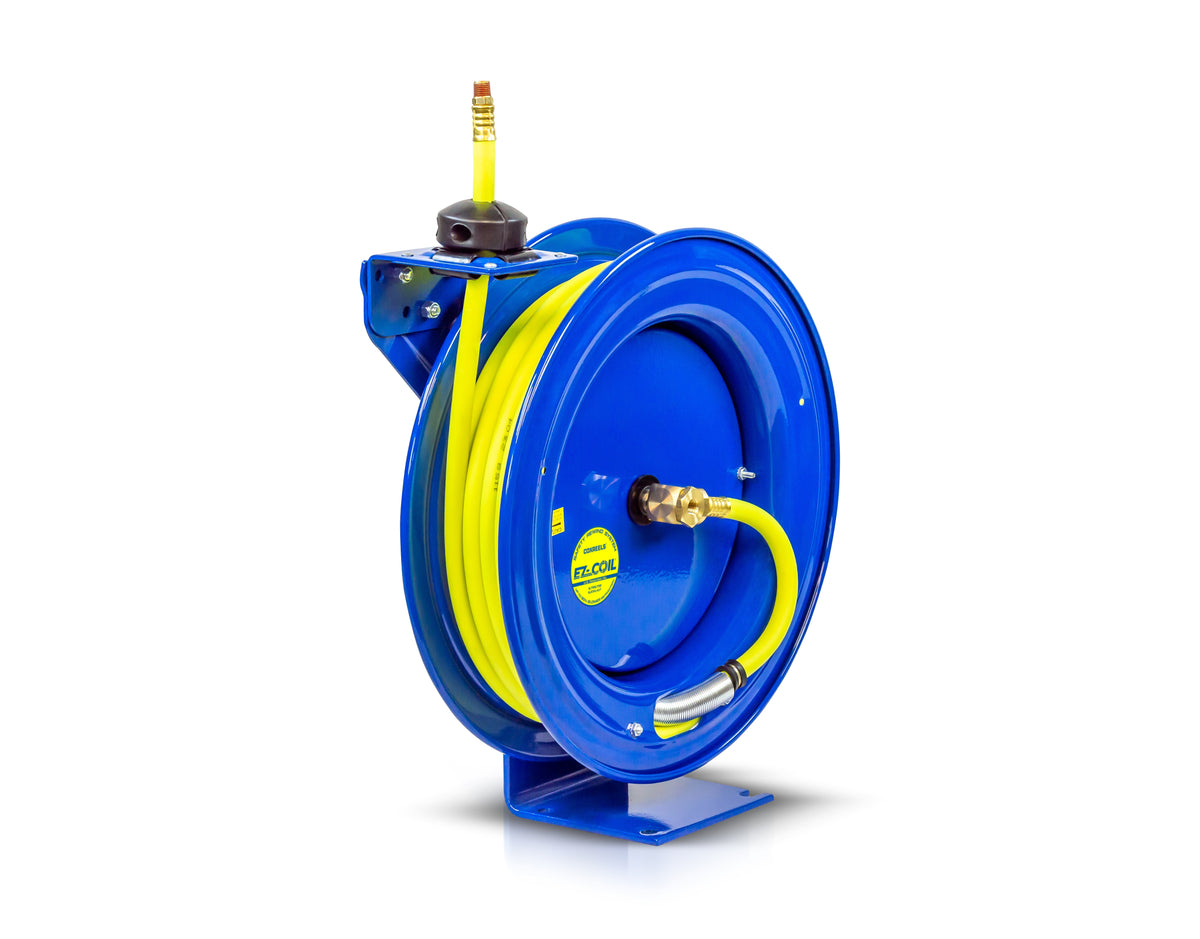

EZ-P-LP-325-HV by Coxreels | EZ-P HI-VIS Series | 300 PSI EZ-Coil Safety Spring Driven Hose Reel for Air & Water | 3/8" Hose ID, 3/8" MNPT Inlet x 3/8" MNPT Hose End | Steel | 25ft PVC/Rubber Hybrid Hose Included
Buy more, save moreDiscounts applied in cart/checkout.
EZ-Coil® hose reel
Coxreels EZ-P HI-VIS Series EZ-Coil® Hose Reels
Steel single-pedestal EZ-Coil® spring driven hose reels for air, water, washdown and chemical fluid transfer, rated to 300 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Washdown
- Chemical Fluid Transfer
2
What are the key specifications?
Construction
Steel, single-pedestal
Swivel
Brass 90° full-flow with Nitrile seals
Max Temperature
150°F
Bearings
1" Permanently Lubricated Precision Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Ceiling, Bench and Vehicles
Ø0.5" mounting holes
3
What are the main product features?
- Swivel — Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- EZ-Coil® Equipped — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base — Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- Hi-Vis Safety Hose — Hybrid bright yellow hose with a white glossy stripe available Hybrid hoses (PVC + Rubber blend) offer similar performance to rubber with the weight of PVC, combining positive features of both hose types. Increased hose flexibility and better low temperature behavior while maintaining strength and toughness. With enhanced kink resistance and reduced coil memory, they lay flat for a reduced trip hazard potential. Less sticky jacket surface than PVC for better stacking performance and an improved non-marring quality.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Inlet | Drum Width | Disc Diameter | Reel W × H × L (in) |
|---|---|---|---|---|---|---|---|
| EZ-P-LP-325-HV | 3/8" | 25 ft | 300 | 3/8" MNPT | 2.88" | 9.69" | 6.5 × 14.875 × 13.5 |
| EZ-P-LP-350-HV | 3/8" | 50 ft | 300 | 3/8" FNPT | 3.75" | 11.88" | 6.75 × 18.625 × 17.125 |
| EZ-P-LP-450-HV | 1/2" | 50 ft | 300 | 1/2" FNPT | 3.75" | 11.13" | 7 × 18.625 × 17.125 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets — fit every model | ||
| 15724 | EZ-Up "I" or "H" Beam Adapter | |
| 15723 | EZ-Up Bracket | |
| MR-1 | Overhead Mounting Bracket | |
| 15720 | Swing Bracket | |
| 15721 | Swivel Bracket | |
| Inlet connections | ||
| 5153-1.5 | 18" inlet hose | Every model except EZ-P-LP-450-HV |
| 5154-1.5 | 18" inlet hose | Every model except EZ-P-LP-325/350-HV |
| 208 | 90° inlet elbow (brass) | Every model except EZ-P-LP-450-HV |
| 222 | 90° inlet elbow (brass) | Every model except EZ-P-LP-325/350-HV |
| 15717 | Garden Hose Kit | Every model except EZ-P-LP-325/350-HV |
| Hose end | ||
| 131-3 | Hose/cord stop | Every model except EZ-P-LP-450-HV |
| 131-4 | Hose/cord stop | Every model except EZ-P-LP-325/350-HV |
| 10759-2 | Quick disconnect | Every model except EZ-P-LP-450-HV |
| 237-1 | Spiral hose/cord guard | Every model except EZ-P-LP-450-HV |
| 398-1 | Spiral hose/cord guard | Every model except EZ-P-LP-325/350-HV |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BVX is -GVX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Hose suffix | |
| -OG | Oil/Grease Resistant |
| -RH | Red EPDM |
| -BH | Black EPDM |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVX | Standard swivel with Viton |
| -BEX | Standard swivel with EPR |
| -BAX | Stainless steel swivel with Nitrile |
| -BBX | Stainless steel swivel with Viton |
| -BCX | Stainless steel swivel with EPR |
| -BGX | BSP swivel with Nitrile |
| -BHX | BSP swivel with Viton |
| -BIX | BSP swivel with EPR |
| -BLX | Stainless steel BSP swivel with Nitrile |
| -BMX | Stainless steel BSP swivel with Viton |
| -BNX | Stainless steel BSP swivel with EPR |
| -BYX | Food grade Brass swivel |
| -BWX | Food grade stainless steel swivel |
| -BZX | Less swivel |
| Other | |
| -BXB | Bend Restrictor |
| -BXC | Constant Tension |
| -BXK / -BXL | Air Tool Kit |
| -BXS | Solid Roller Assembly |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
