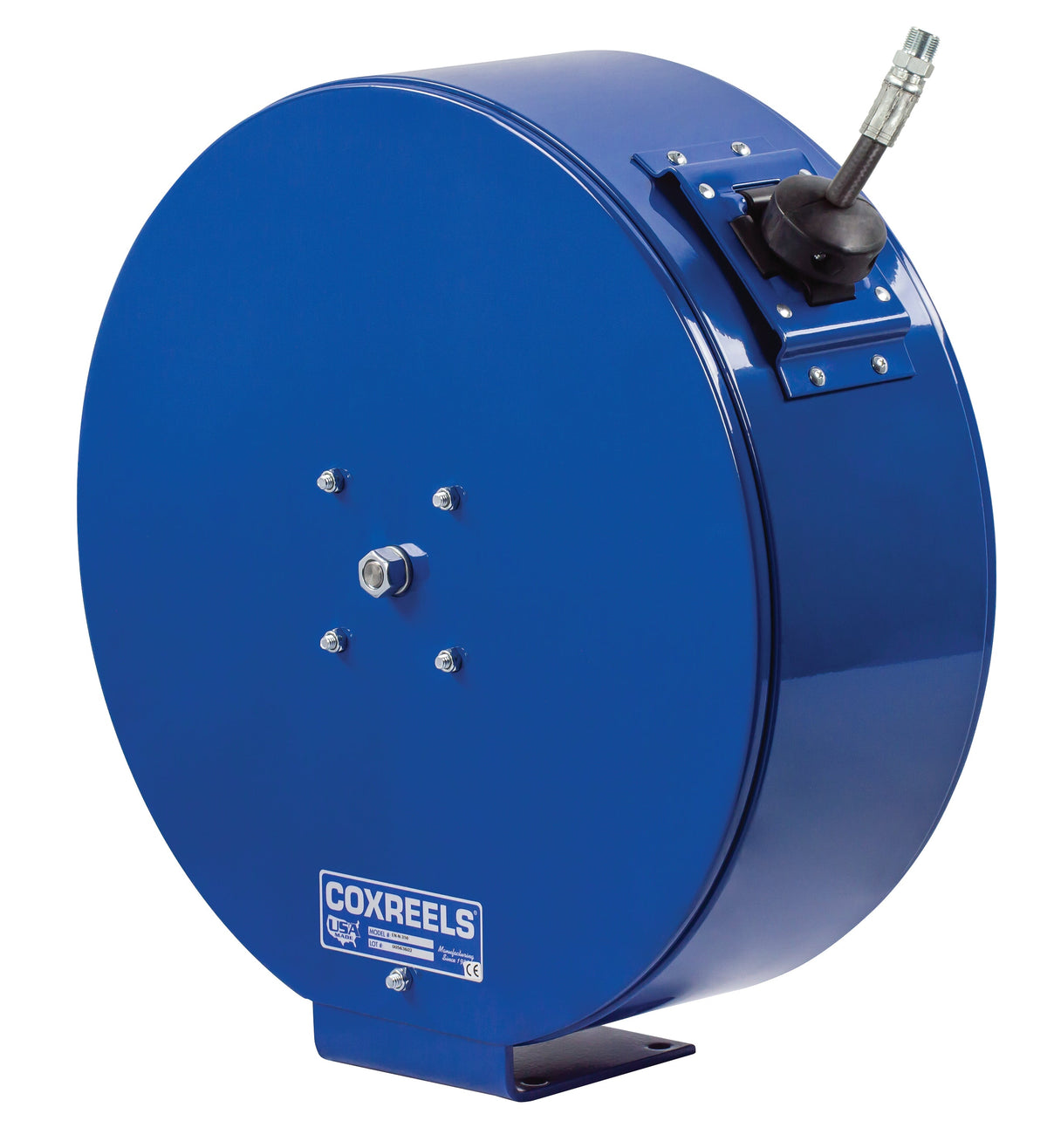

ENM-N-325 by Coxreels | EN Series | 3,000 PSI Enclosed Spring Driven Hose Reel for Air, Water & Oil | 3/8" Hose ID, 3/8" FNPT Inlet x 3/8" MNPT Hose End | Steel | 25ft Rubber Hose Included
Buy more, save moreDiscounts applied in cart/checkout.
Spring driven hose reel
Coxreels EN Series Spring Driven Hose Reels
Steel enclosed spring driven hose reels for air, water, oil and lubrication, grease and hydraulics and pressure washing, rated to 5,000 PSI. Made in the U.S.A.
1
What is this product used for?
- 300 PSI models — Air, water, washdown, chemical fluid transfer.
- 2,500–3,000 PSI models — Air, water, oil & lubrication, washdown, chemical fluid transfer.
- 4,000–5,000 PSI models — Air, water, oil & lubrication, grease & hydraulics, pressure washing.
2
What are the key specifications?
Construction
Steel, enclosed
Swivel
Nitrile seals
Inlet
Female NPT, same size as the hose I.D.
Max Temperature
250°F / 150°F depending on hose
Bearings
1" Permanently Lubricated Precision Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Ceiling, Bench and Vehicles
Mounting Holes
Ø0.5"
3
What are the main product features?
- Swivel — 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base — Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.Exclusive Super Hub™dual axle support system.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Disc Diameter | Reel W × H × L (in) |
|---|---|---|---|---|---|---|
| Low Pressure — PVC hose included | ||||||
| EN-N-125 | 1/4" | 25 ft | 300 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| EN-N-135 | 1/4" | 35 ft | 300 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| EN-N-150 | 1/4" | 50 ft | 300 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| EN-N-160 | 1/4" | 60 ft | 300 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| EN-N-325 | 3/8" | 25 ft | 300 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| EN-N-335 | 3/8" | 35 ft | 300 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| EN-N-350 | 3/8" | 50 ft | 300 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| EN-N-360 | 3/8" | 60 ft | 300 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| EN-N-425 | 1/2" | 25 ft | 300 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| EN-N-435 | 1/2" | 35 ft | 300 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| EN-N-450 | 1/2" | 50 ft | 300 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| Low Pressure — hose not included | ||||||
| ENL-N-125 | 1/4" | 25 ft | 300 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENL-N-135 | 1/4" | 35 ft | 300 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENL-N-150 | 1/4" | 50 ft | 300 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENL-N-160 | 1/4" | 60 ft | 300 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| ENL-N-325 | 3/8" | 25 ft | 300 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENL-N-335 | 3/8" | 35 ft | 300 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENL-N-350 | 3/8" | 50 ft | 300 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| ENL-N-360 | 3/8" | 60 ft | 300 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| ENL-N-425 | 1/2" | 25 ft | 300 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENL-N-435 | 1/2" | 35 ft | 300 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| ENL-N-450 | 1/2" | 50 ft | 300 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| Medium Pressure — rubber hose included | ||||||
| ENM-N-325 | 3/8" | 25 ft | 3,000 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENM-N-335 | 3/8" | 35 ft | 3,000 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENM-N-350 | 3/8" | 50 ft | 3,000 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| ENM-N-425 | 1/2" | 25 ft | 2,500 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENM-N-435 | 1/2" | 35 ft | 2,500 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| ENM-N-450 | 1/2" | 50 ft | 2,500 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| Medium Pressure — hose not included | ||||||
| ENML-N-325 | 3/8" | 25 ft | 3,000 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENML-N-335 | 3/8" | 35 ft | 3,000 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENML-N-350 | 3/8" | 50 ft | 3,000 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| ENML-N-425 | 1/2" | 25 ft | 2,500 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENML-N-435 | 1/2" | 35 ft | 2,500 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| ENML-N-450 | 1/2" | 50 ft | 2,500 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| High Pressure — rubber hose included | ||||||
| ENH-N-125 | 1/4" | 25 ft | 5,000 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENH-N-135 | 1/4" | 35 ft | 5,000 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENH-N-150 | 1/4" | 50 ft | 5,000 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| ENH-N-160 | 1/4" | 60 ft | 5,000 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| ENH-N-325 | 3/8" | 25 ft | 4,000 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENH-N-335 | 3/8" | 35 ft | 4,000 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| ENH-N-350 | 3/8" | 50 ft | 4,000 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| High Pressure — hose not included | ||||||
| ENHL-N-125 | 1/4" | 25 ft | 5,000 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENHL-N-135 | 1/4" | 35 ft | 5,000 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENHL-N-150 | 1/4" | 50 ft | 5,000 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| ENHL-N-160 | 1/4" | 60 ft | 5,000 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| ENHL-N-325 | 3/8" | 25 ft | 4,000 | 3.75" | 17" | 6.875 × 18.875 × 19 |
| ENHL-N-335 | 3/8" | 35 ft | 4,000 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
| ENHL-N-350 | 3/8" | 50 ft | 4,000 | 4.5" | 19.5" | 8.5 × 21.75 × 21.875 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets — fit every model | ||
| 15724 | EZ-Up "I" or "H" Beam Adapter | |
| 15723 | EZ-Up Bracket | |
| MR-1 | Overhead Mounting Bracket | |
| 15720 | Swing Bracket | |
| 15721 | Swivel Bracket | |
| Inlet connections | ||
| 5150-1.5 | 18" inlet hose | EN-N-125/135/150/160; ENL-N-125/135/150/160 |
| 5153-1.5 | 18" inlet hose | EN-N-325/335/350/360; ENL-N-325/335/350/360 |
| 5154-1.5 | 18" inlet hose | EN-N-425/435/450; ENL-N-425/435/450 |
| 5224-1.5 | 18" inlet hose | Max PSI 3,000 |
| 5256-1.5 | 18" inlet hose | Max PSI 2,500 |
| 5304-1.5 | 18" inlet hose | Max PSI 5,000 |
| 5336-1.5 | 18" inlet hose | Max PSI 4,000 |
| 208 | 90° inlet elbow (brass) | EN-N-325/335/350/360; ENL-N-325/335/350/360 |
| 222 | 90° inlet elbow (brass) | EN-N-425/435/450; ENL-N-425/435/450 |
| 6088 | 90° inlet elbow (brass) | EN-N-125/135/150/160; ENL-N-125/135/150/160 |
| 500 | 90° inlet elbow (steel) | Max PSI 3,000 |
| 616 | 90° inlet elbow (steel) | Max PSI 5,000 |
| 617 | 90° inlet elbow (steel) | Max PSI 4,000 |
| 1671 | 90° inlet elbow (steel) | Max PSI 2,500 |
| Hose end | ||
| 131 | Hose/cord stop | Hose I.D. 1/4" |
| 131-3 | Hose/cord stop | Hose I.D. 3/8" |
| 131-4 | Hose/cord stop | Hose I.D. 1/2" |
| 10759-1 | Quick disconnect | EN-N-125/135/150/160; ENL-N-125/135/150/160 |
| 10759-2 | Quick disconnect | EN-N-325/335/350/360; ENL-N-325/335/350/360 |
| 237-1 | Spiral hose/cord guard | Hose I.D. 1/4", 3/8" |
| 398-1 | Spiral hose/cord guard | Hose I.D. 1/2" |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BVX is -GVX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Hose suffix | |
| -B | Blue PVC Hose |
| -Y | Yellow PVC Hose |
| -OG | Oil/Grease Resistant |
| -RH | Red EPDM |
| -BH | Black EPDM |
| -HV | Hi-Vis PVC+Rubber Hybrid Hose |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVX | Standard swivel with Viton |
| -BEX | Standard swivel with EPR |
| -BAX | Stainless steel swivel with Nitrile |
| -BBX | Stainless steel swivel with Viton |
| -BCX | Stainless steel swivel with EPR |
| -BGX | BSP swivel with Nitrile |
| -BHX | BSP swivel with Viton |
| -BIX | BSP swivel with EPR |
| -BLX | Stainless steel BSP swivel with Nitrile |
| -BMX | Stainless steel BSP swivel with Viton |
| -BNX | Stainless steel BSP swivel with EPR |
| -BYX | Food grade Brass swivel |
| -BYX | Food grade stainless steel swivel |
| -BZX | Less swivel |
| Other | |
| -BXC | Constant Tension |
| -BXB | Bend Restrictor |
| -BXK / -BXL | Air Tool Kit |
7
Where can I find product documents?
EN Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
