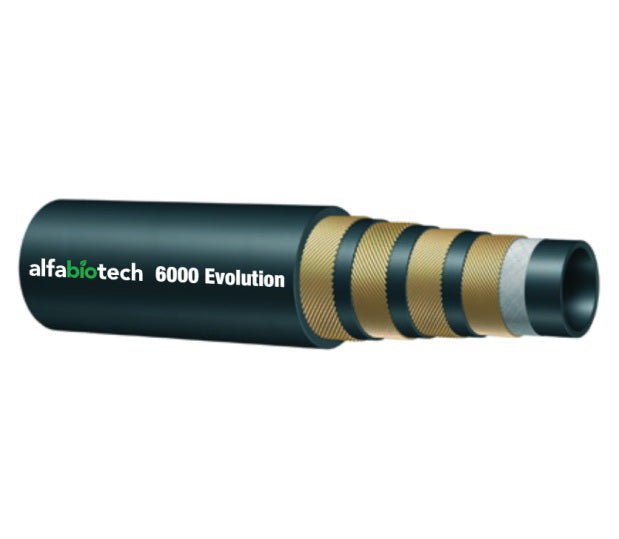

E6K-10 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E6K Series | 4-Wire | Minetuff Hydraulic Hose | 5/8" ID | 1.09" OD | 6000 PSI

E6K-10 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E6K Series | 4-Wire | Minetuff Hydraulic Hose | 5/8" ID | 1.09" OD | 6000 PSI | Bulk/Multiple Piece Quantities

Sale price$14.00

Kuriyama of America Inc.
Alfagomma | Alfabiotech Evolution Series | E6K Series | 6000 PSI Minetuff Hydraulic Hose

Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing.

This item is sold as Bulk Length and thus may come in multiple sections.
Buy More, Save More!
Quantity Price Each
10–39 $13.16
40–79 $11.90
80+ $10.50
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • E6K Series
Color(s):
  • Black

SPECIFICATIONS

Application: Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing. SAE Rating: SAE 100R15 (1" through 2")
Other Ratings: EN856 4SP (1/4", 3/8" and 1/2")
EN856 4SH (3/4" and 1")
ISO 18752/CC 1,000,000+ impulse cycles
MSHA IC-152/16 approved flame resistance		 Tube: Oil resistant synthetic rubber and biodegradable hydraulic fluids
Reinforcement: Four/six high tensile steel spirals Cover: Smooth up to 1", Wrapped over 1", abrasion, ozone and hydrocarbon resistant synthetic rubber
Service Temperature Range: -40°F (-40°C) to +250°F (+121°C) Specifications -
Branding: ALFAGOMMA ALFABIOTECH EVOLUTION 6K MINETUFF ... WP 45 MPa (6550 PSI) - ISO 18752/CC- MSHA IC- 152/16 - MADE IN ITALY
Other Features:
  • MineTuff Cover
  • Extremely Flexible
Part Number ID OD Max. Working
Pressure
at 68°F		 Min Bend
Radius		 Standard
Length		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (ft.) (lbs./ft.)
E6K-04 1/4" 6.4mm 0.67" 17.0mm 6000 PSI 2.36" 60.0mm By the Foot 0.35 lbs
E6K-06 3/8" 9.5mm 0.78" 19.8mm 6000 PSI 2.95" 75.0mm By the Foot 0.42 lbs
E6K-08 1/2" 12.7mm 0.89" 22.5mm 6000 PSI 3.54" 90.0mm By the Foot 0.48 lbs
E6K-10 5/8" 15.9mm 1.09" 27.8mm 6000 PSI 3.94" 100.0mm By the Foot 0.80 lbs
E6K-12 3/4" 19.1mm 1.20" 30.6mm 6000 PSI 4.72" 120.0mm By the Foot 0.93 lbs
E6K-16 1" 25.4mm 1.50" 38.2mm 6000 PSI 5.91" 150.0mm By the Foot 1.30 lbs
E6K-20 1-1/4" 31.8mm 1.87" 47.6mm 6000 PSI 8.86" 225.0mm 200 ft 2.01 lbs
E6K-24 1-1/2" 38.1mm 2.14" 54.4mm 6000 PSI 12.01" 305.0mm 200 ft 2.80 lbs
E6K-32 2" 50.8mm 2.70" 68.7mm 6000 PSI 14.96" 380.0mm 100 ft 4.09 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
