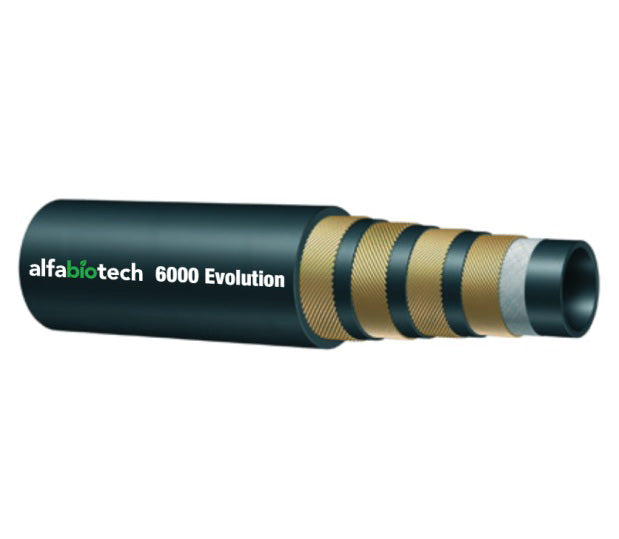

E6K-06 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E6K Series | 4-Wire | Minetuff Hydraulic Hose | 3/8" ID | 0.78" OD | 6000 PSI | Bulk/Multiple Piece Quantities
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing. | SAE Rating: | SAE 100R15 (1" through 2") |
|---|---|---|---|
| Other Ratings: | EN856 4SP (1/4", 3/8" and 1/2") EN856 4SH (3/4" and 1") ISO 18752/CC 1,000,000+ impulse cycles MSHA IC-152/16 approved flame resistance |
Tube: | Oil resistant synthetic rubber and biodegradable hydraulic fluids |
| Reinforcement: | Four/six high tensile steel spirals | Cover: | Smooth up to 1", Wrapped over 1", abrasion, ozone and hydrocarbon resistant synthetic rubber |
| Service Temperature Range: | -40°F (-40°C) to +250°F (+121°C) | Specifications | - |
| Branding: | ALFAGOMMA ALFABIOTECH EVOLUTION 6K MINETUFF ... WP 45 MPa (6550 PSI) - ISO 18752/CC- MSHA IC- 152/16 - MADE IN ITALY | ||
| Other Features: | |||
|
|||
| Part Number | ID | OD | Max. Working Pressure at 68°F |
Min Bend Radius |
Standard Length |
Weight | |||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (ft.) | (lbs./ft.) | |
| E6K-04 | 1/4" | 6.4mm | 0.67" | 17.0mm | 6000 PSI | 2.36" | 60.0mm | By the Foot | 0.35 lbs |
| E6K-06 | 3/8" | 9.5mm | 0.78" | 19.8mm | 6000 PSI | 2.95" | 75.0mm | By the Foot | 0.42 lbs |
| E6K-08 | 1/2" | 12.7mm | 0.89" | 22.5mm | 6000 PSI | 3.54" | 90.0mm | By the Foot | 0.48 lbs |
| E6K-10 | 5/8" | 15.9mm | 1.09" | 27.8mm | 6000 PSI | 3.94" | 100.0mm | By the Foot | 0.80 lbs |
| E6K-12 | 3/4" | 19.1mm | 1.20" | 30.6mm | 6000 PSI | 4.72" | 120.0mm | By the Foot | 0.93 lbs |
| E6K-16 | 1" | 25.4mm | 1.50" | 38.2mm | 6000 PSI | 5.91" | 150.0mm | By the Foot | 1.30 lbs |
| E6K-20 | 1-1/4" | 31.8mm | 1.87" | 47.6mm | 6000 PSI | 8.86" | 225.0mm | 200 ft | 2.01 lbs |
| E6K-24 | 1-1/2" | 38.1mm | 2.14" | 54.4mm | 6000 PSI | 12.01" | 305.0mm | 200 ft | 2.80 lbs |
| E6K-32 | 2" | 50.8mm | 2.70" | 68.7mm | 6000 PSI | 14.96" | 380.0mm | 100 ft | 4.09 lbs |
