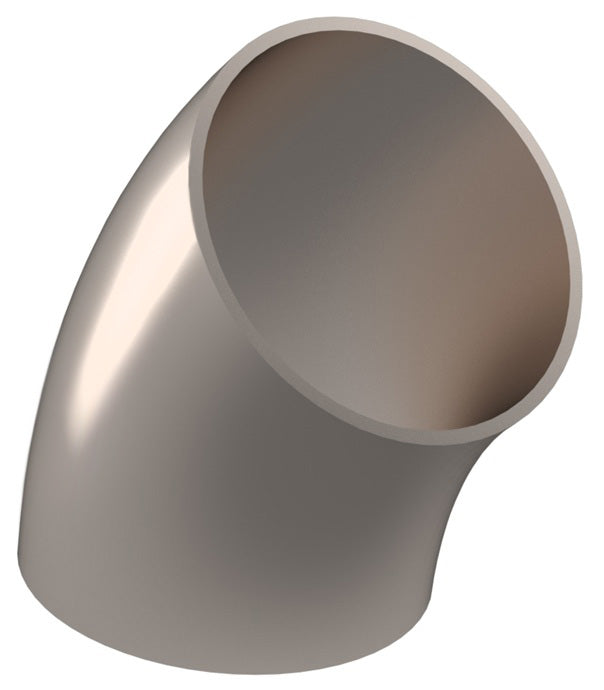

DVF-C300G1S Dixon Valve Vacuum Weld Fitting - Weld 45° Elbow for D-TORR Vacuum Fitting - 3" OD - 304 Stainless Steel
Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: Vacuum Weld Fitting - Weld 45° Elbow
Dixon® manufactures high-quality weld fittings for use in high-vacuum and high-temperature applications.
Each part is crafted with precision to ensure a leak-free fit. All fittings are IPA cleaned and bagged in a controlled environment.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $51.32 |
| 40–79 | $46.41 |
| 80+ | $40.95 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Material(s):
| Application: | |||
|---|---|---|---|
|
|||
| Materials: | |||
|
|||
| Specifications: | |||
|
| Part Number | OD | Dimensions |
|||
|---|---|---|---|---|---|
| A | R | B | C | ||
| DVF-C050G1S | 1/2" | 0.311" | 0.750" | 0.065" | 0.500" |
| DVF-C075G1S | 3/4" | 0.41" | 1.00" | 0.065" | 0.75" |
| DVF-C100G1S | 1" | 0.62" | 1.50" | 0.065" | 1.00" |
| DVF-C150G1S | 1-1/2" | 0.93" | 2.25" | 0.065" | 1.50" |
| DVF-C200G1S | 2" | 1.24" | 3.00" | 0.065" | 2.00" |
| DVF-C250G1S | 2-1/2" | 1.55" | 3.75" | 0.065" | 2.50" |
| DVF-C300G1S | 3" | 1.86" | 4.50" | 0.065" | 3.00" |
| DVF-C400G1S | 4" | 2.49" | 6.00" | 0.083" | 4.00" |
| DVF-C600G1S | 6" | 3.73" | 9.00" | 0.109" | 6.00" |
Dimensions are approximate and subject to change at any time without notice.
