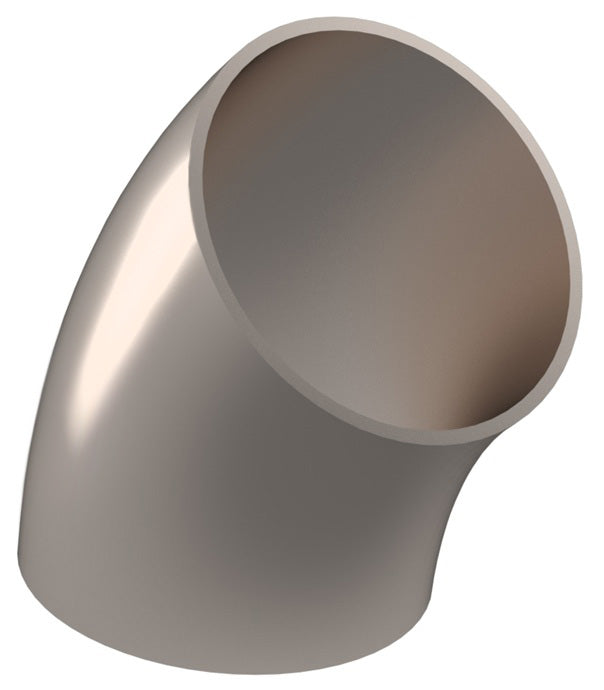

DVF-C200G1S Dixon Valve Vacuum Weld Fitting - Weld 45° Elbow for D-TORR Vacuum Fitting - 2" OD - 304 Stainless Steel
Buy more, save moreDiscounts applied in cart/checkout.
| Application: | |||
|---|---|---|---|
|
|||
| Materials: | |||
|
|||
| Specifications: | |||
|
| Part Number | OD | Dimensions |
|||
|---|---|---|---|---|---|
| A | R | B | C | ||
| DVF-C050G1S | 1/2" | 0.311" | 0.750" | 0.065" | 0.500" |
| DVF-C075G1S | 3/4" | 0.41" | 1.00" | 0.065" | 0.75" |
| DVF-C100G1S | 1" | 0.62" | 1.50" | 0.065" | 1.00" |
| DVF-C150G1S | 1-1/2" | 0.93" | 2.25" | 0.065" | 1.50" |
| DVF-C200G1S | 2" | 1.24" | 3.00" | 0.065" | 2.00" |
| DVF-C250G1S | 2-1/2" | 1.55" | 3.75" | 0.065" | 2.50" |
| DVF-C300G1S | 3" | 1.86" | 4.50" | 0.065" | 3.00" |
| DVF-C400G1S | 4" | 2.49" | 6.00" | 0.083" | 4.00" |
| DVF-C600G1S | 6" | 3.73" | 9.00" | 0.109" | 6.00" |
Dimensions are approximate and subject to change at any time without notice.
Additional Product Data:
Shape:
45 Degree
Material(s):
