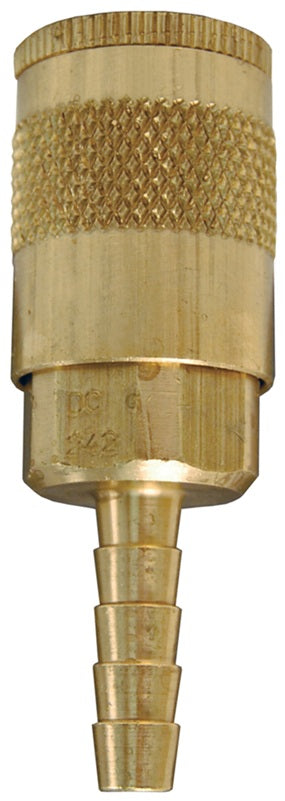

DC242 Air Chief by Dixon Valve | Pneumatic Automotive Interchange Coupler/Socket | Semi-Automatic | Hose Barb | 1/4" Hose ID x 1/4" Body Size | Brass

DC242 Air Chief by Dixon Valve | Pneumatic Automotive Interchange Coupler/Socket | Semi-Automatic | Hose Barb | 1/4" Hose ID x 1/4" Body Size | Brass

Sale price$20.59
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Compatibility & Interchange:
  • Interchange with popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton, and Tru-Flate, some designs do not interchange with others.
  • If you plan to interchange these couplings, make sure you have plug ends with the proper configuration.
Specifications:
  • Pressure rating: 300 PSI
  • Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
  • For air service only.
Pneumatic Automotive Interchange Coupler/Socket | Semi-Automatic | Standard Hose Barb
Part Number Coupling Type Material Body Size Hose ID Flow Rating
at 100 PSI
DC242 Socket/Female Brass 1/4" 1/4" 37 CFM
DC244 Socket/Female Brass 1/4" 3/8" 37 CFM
DC644 Socket/Female Brass 3/8" 3/8" 70 CFM
DC645 Socket/Female Brass 3/8" 1/2" 70 CFM
Pneumatic Automotive Interchange Plug | Semi-Automatic | Standard Hose Barb
Part Number Coupling Type Material Body Size Hose ID Flow Rating
at 100 PSI
DCP142 Plug/Male Steel 1/4" 1/4" 37 CFM
DCP144 Plug/Male Steel 1/4" 3/8" 37 CFM
DCP544 Plug/Male Steel 3/8" 3/8" 37 CFM

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Female Tru-Flate QD Interchange
  • 1/4in Hose Barb
Material(s):
  • Brass

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
