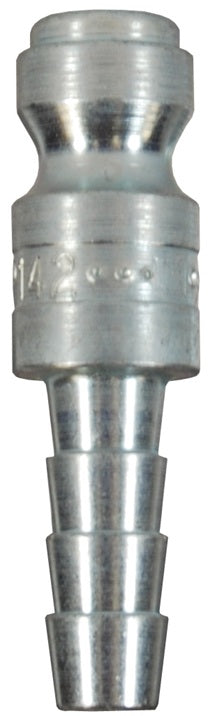

DCP544 Air Chief by Dixon Valve | Pneumatic Automotive Interchange Plug | Semi-Automatic | Hose Barb | 3/8" Hose ID x 3/8" Body Size | Steel
Air Chief Automotive Interchange Quick-Connect Plugs Air Chief automotive quick-connect plugs will interchange with the popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton and Truflate. There are some makes however, which do not interchange with any others. If you plan to interchange these couplings, make sure you have plug ends with the proper configuration. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $9.37 |
| 40–79 | $8.47 |
| 80+ | $7.48 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Compatibility & Interchange: | |||
|---|---|---|---|
|
|||
| Specifications: | |||
|
|||
| Safety Notes: | |||
|
| Pneumatic Automotive Interchange Plug | Semi-Automatic | Standard Hose Barb | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
|||||||||
| Part Number | Coupling Type | Material | Body Size | Hose ID | Flow Rating at 100 PSI |
||||
| DCP142 | Plug/Male | Steel | 1/4" | 1/4" | 37 CFM | ||||
| DCP144 | Plug/Male | Steel | 1/4" | 3/8" | 37 CFM | ||||
| DCP544 | Plug/Male | Steel | 3/8" | 3/8" | 37 CFM | ||||
| Pneumatic Automotive Interchange Coupler/Socket | Semi-Automatic | Standard Hose Barb | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
|||||||||
| Part Number | Coupling Type | Material | Body Size | Hose ID | Flow Rating at 100 PSI |
||||
| DC242 | Socket/Female | Brass | 1/4" | 1/4" | 37 CFM | ||||
| DC244 | Socket/Female | Brass | 1/4" | 3/8" | 37 CFM | ||||
| DC644 | Socket/Female | Brass | 3/8" | 3/8" | 70 CFM | ||||
| DC645 | Socket/Female | Brass | 3/8" | 1/2" | 70 CFM | ||||
