CS27-12X12 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x 1-1/16x12 Thread JIC Seat Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 12657V
Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC/SAE Dual Seat - 90° Female Swivel Long Drop
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $24.33 |
| 40–79 | $22.00 |
| 80+ | $19.41 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

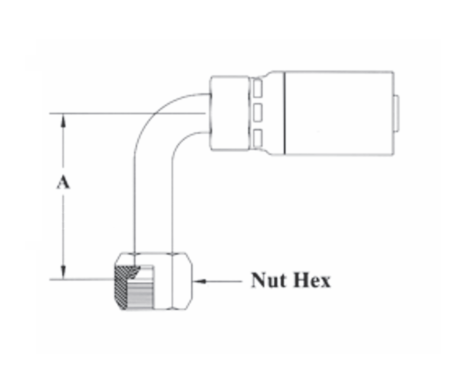

| Part Number | Hose ID | Thread Size | Tube OD | A-Drop Inches | Nut Hex | Previous Part Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | |||||||
| CS27-4X4 | 1/4" | 7/16x20 | 1/4" | 1.80" | 9/16" | 4163V | HY04-04FJ90TL | 141HY-4-4 | 04U-644 |
| CS27-4X5 | 1/4" | 1/2x20 | 5/16" | 1.80 | 5/8" | 4166V | - | - | - |
| CS27-4X6* | 1/4" | 9/16x18 | 3/8" | 2.18 | 11/16" | 4178V* | HY04-06FJ90TL | 141HY-6-4 | - |
| CS27-6X4 | 3/8" | 7/16x20 | 1/4" | 1.80 | 9/16" | 6190V | - | - | 06U-644 |
| CS27-6X6* | 3/8" | 9/16x18 | 3/8" | 2.18 | 11/16" | 6166V* | HY06-06FJ90TL | 141HY-6-6 | 06U-646 |
| CS27-6X8 | 3/8" | 3/4x16 | 1/2" | 2.50 | 7/8" | 6124V | - | - | 06U-648 |
| CS27-8X8 | 1/2" | 3/4x16 | 1/2" | 2.50 | 7/8" | 8163V | HY08-08FJ90TL | 141HY-8-8 | 08U-648 |
| CS27-8X10 | 1/2" | 7/8x14 | 5/8" | 2.75 | 1" | 8166V | HY08-10FJ90TL | 141HY-10-8 | 08U-650 |
| CS27-10X10 | 5/8" | 7/8x14 | 5/8" | 2.75 | 1" | 1069V | - | - | - |
| CS27-12X12 | 3/4" | 1-1/16x12 | 3/4" | 3.73 | 1-1/4" | 12657V* | HY12-12FJ90TL | 141HY-12-12 | 12U-652 |
| CS27-16X16* | 1" | 1-5/16x12 | 1" | 4.50 | 1-1/2" | 16657V* | HY16-16FJ90TL | 141HY-16-16 | 16U-656L |
* JIC Seat & Thread Only.
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
