CS27-8X8 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 3/4x16 Thread JIC/SAE Dual Seat Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 8163V | Pack of 5

CS27-8X8 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 3/4x16 Thread JIC/SAE Dual Seat Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 8163V | Pack of 5

Sale price$76.73

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC/SAE Dual Seat - 90° Female Swivel Long Drop

Package Quantity: 5 EA

Buy More, Save More!
Quantity Price Each
5–19 $72.13
20–59 $65.22
60+ $57.55
Discounts applied in cart/checkout.

Product Data:

Series:
  • VARI-CRIMP Series
Shape:

90 Degree

Ends Configuration:
  • 1/2in Female JIC
  • 1/2in Hose Barb
  • 1/2in Female SAE 45 Flare
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

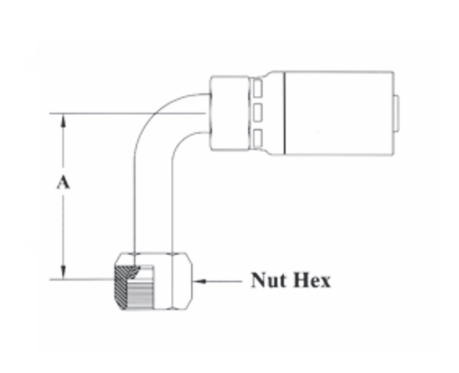

Part Number Hose ID Thread Size Tube OD A-Drop Inches Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS27-4X4 1/4" 7/16x20 1/4" 1.80" 9/16" 4163V HY04-04FJ90TL 141HY-4-4 04U-644
CS27-4X5 1/4" 1/2x20 5/16" 1.80 5/8" 4166V - - -
CS27-4X6* 1/4" 9/16x18 3/8" 2.18 11/16" 4178V* HY04-06FJ90TL 141HY-6-4 -
CS27-6X4 3/8" 7/16x20 1/4" 1.80 9/16" 6190V - - 06U-644
CS27-6X6* 3/8" 9/16x18 3/8" 2.18 11/16" 6166V* HY06-06FJ90TL 141HY-6-6 06U-646
CS27-6X8 3/8" 3/4x16 1/2" 2.50 7/8" 6124V - - 06U-648
CS27-8X8 1/2" 3/4x16 1/2" 2.50 7/8" 8163V HY08-08FJ90TL 141HY-8-8 08U-648
CS27-8X10 1/2" 7/8x14 5/8" 2.75 1" 8166V HY08-10FJ90TL 141HY-10-8 08U-650
CS27-10X10 5/8" 7/8x14 5/8" 2.75 1" 1069V - - -
CS27-12X12 3/4" 1-1/16x12 3/4" 3.73 1-1/4" 12657V* HY12-12FJ90TL 141HY-12-12 12U-652
CS27-16X16* 1" 1-5/16x12 1" 4.50 1-1/2" 16657V* HY16-16FJ90TL 141HY-16-16 16U-656L

* JIC Seat & Thread Only.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
