CS24-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 7/16x20 Thread JIC/SAE Dual Seat Female Swivel Medium Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 4132V
Buy more, save moreDiscounts applied in cart/checkout.
Vari-Crimp — Universal Crimp
CS24 Vari-Crimp — JIC, Female Swivel, 90° Elbow
CS24 is the JIC, Female Swivel, 90° Elbow configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.
1
What are the main product features?
- The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
- Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
- One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
- For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.
2
Which sizes are available?

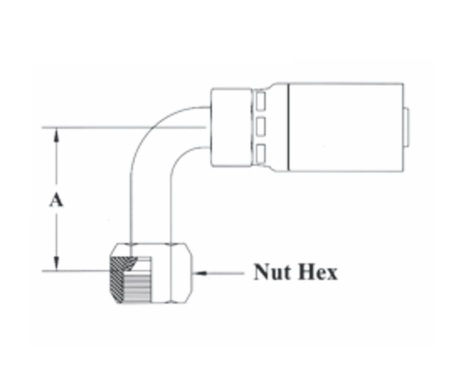

| Part Number | Hose ID | Thread Size | Tube OD | A-Drop Inches | Nut Hex | Previous Part Number |
|---|---|---|---|---|---|---|
| CS24-4X4 | 1/4" | 7/16x20 | 1/4" | 1.26" | 9/16" | 4132V |
| CS24-6X6* | 3/8" | 9/16x18 | 3/8" | 1.50 | 11/16" | 6162V* |
| CS24-8X8 | 1/2" | 3/4x16 | 1/2" | 1.63 | 7/8" | 8134V |
| CS24-12X12* | 3/4" | 1-1/16x12 | 3/4" | 2.28 | 1-1/4" | 12653V* |
| CS24-16X16* | 1" | 1-5/16x12 | 1" | 2.79 | 1-1/2" | 16653V* |
JIC Seat & Thread Only
Additional Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
