CS24-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 9/16x18 Thread JIC Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Replaces: 6162V

CS24-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 9/16x18 Thread JIC Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Replaces: 6162V

Sale price$15.27

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC/SAE Dual Seat - 90° Female Swivel Medium Drop
Buy More, Save More!
Quantity Price Each
10–39 $14.35
40–79 $12.98
80+ $11.45
Discounts applied in cart/checkout.

Product Data:

Series:
  • VARI-CRIMP Series
Shape:

90 Degree

Ends Configuration:
  • 3/8in Female JIC
  • 3/8in Hose Barb
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

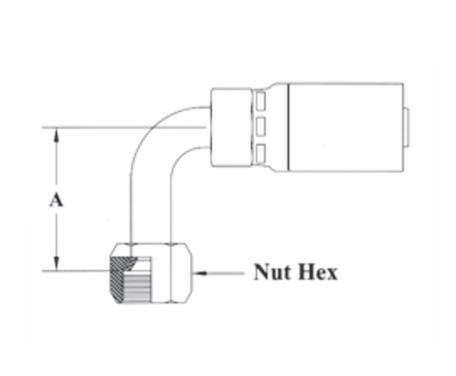

Part Number Hose ID Thread Size Tube OD A-Drop Inches Nut Hex Previous Part Number
CS24-4X4 1/4" 7/16x20 1/4" 1.26" 9/16" 4132V
CS24-6X6* 3/8" 9/16x18 3/8" 1.50 11/16" 6162V*
CS24-8X8 1/2" 3/4x16 1/2" 1.63 7/8" 8134V
CS24-12X12* 3/4" 1-1/16x12 3/4" 2.28 1-1/4" 12653V*
CS24-16X16* 1" 1-5/16x12 1" 2.79 1-1/2" 16653V*

* JIC Seat & Thread Only
