CS04-12X12 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x 3/4-14 Thread Male Swivel NPTF | Straight | Trivalent Zinc Plating | Replaces: 1209V | Pack of 10
Package Quantity: 10 EA
Buy more, save moreDiscounts applied in cart/checkout.
Vari-Crimp — Universal Crimp

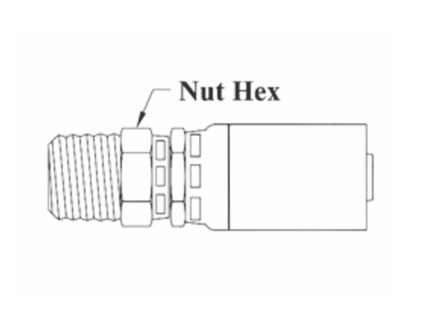

CS04 Vari-Crimp — NPTF, Male Swivel, Straight
CS04 is the NPTF, Male Swivel, Straight configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.
1
What are the main product features?
- The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
- Swivel for installation purposes only. Leakage may occur at low pressure.
- Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
- One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
- For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.
2
Which sizes are available?
| Part Number | Hose ID | Pipe Size | Thread Size | Hex Size | Nut Hex | Previous Part Number | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|---|---|
| Dayco HY | Weatherhead U | |||||||
| CS04-4X2 | 1/4" | 1/8" | 1/8-27 | 9/16" | 5/8" | 462V | HY04-02SP | 04U-J02 |
| CS04-4X4 | 1/4" | 1/4" | 1/4-18 | 9/16" | 5/8" | 406V | HY04-04SP | 04U-J04 |
| CS04-4X6 | 1/4" | 3/8" | 3/8-18 | 11/16" | 3/4" | 466V | HY04-06SP | — |
| CS04-6X4 | 3/8" | 1/4" | 1/4-18 | 11/16" | 3/4" | 666V | HY06-04SP | 06U-J04 |
| CS04-6X6 | 3/8" | 3/8" | 3/8-18 | 11/16" | 3/4" | 609V | HY06-06SP | 06U-J06 |
| CS04-6X8 | 3/8" | 1/2" | 1/2-14 | 3/4" | 7/8" | 651V | HY06-08SP | 06U-J08 |
| CS04-8X6 | 1/2" | 3/8" | 3/8-18 | 13/16" | 3/4" | 857V | HY08-06SP | 08U-J06 |
| CS04-8X8 | 1/2" | 1/2" | 1/2-14 | 13/16" | 7/8" | 809V | HY08-08SP | 08U-J08 |
| CS04-12X12 | 3/4" | 3/4" | 3/4-14 | 1-1/8" | 1-1/4" | 1209V | HY12-12SP | 12U-J12 |
| CS04-16X16 | 1" | 1" | 1/11-1/2 | 1-3/8" | 1-3/8" | 1609V | HY16-16SP | 16U-J16 |
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
