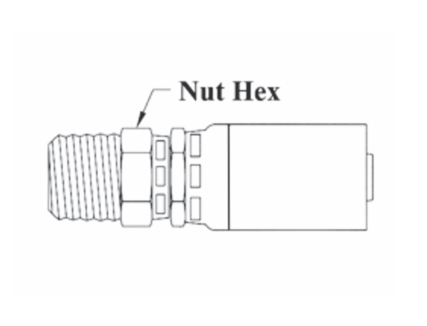

CS04-4X2 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 1/8-27 Thread Male Swivel NPTF | Straight | Trivalent Zinc Plating | Replaces: 462V

CS04-4X2 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 1/8-27 Thread Male Swivel NPTF | Straight | Trivalent Zinc Plating | Replaces: 462V

Sale price$11.46

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Male Swivel
Buy More, Save More!
Quantity Price Each
10–39 $10.77
40–79 $9.74
80+ $8.60
Discounts applied in cart/checkout.

Product Data:

Series:
  • VARI-CRIMP Series
Shape:

Straight

Ends Configuration:
  • 1/8in Male NPTF
  • 1/4in Hose Barb
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Swivel for installation purposes only. Leakage may occur at low pressure.
Part Number Hose ID Pipe Size Thread Size Hex Size Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Weatherhead U
CS04-4X2 1/4" 1/8" 1/8-27 9/16" 5/8" 462V HY04-02SP 04U-J02
CS04-4X4 1/4" 1/4" 1/4-18 9/16" 5/8" 406V HY04-04SP 04U-J04
CS04-4X6 1/4" 3/8" 3/8-18 11/16" 3/4" 466V HY04-06SP -
CS04-6X4 3/8" 1/4" 1/4-18 11/16" 3/4" 666V HY06-04SP 06U-J04
CS04-6X6 3/8" 3/8" 3/8-18 11/16" 3/4" 609V HY06-06SP 06U-J06
CS04-6X8 3/8" 1/2" 1/2-14 3/4" 7/8" 651V HY06-08SP 06U-J08
CS04-8X6 1/2" 3/8" 3/8-18 13/16" 3/4" 857V HY08-06SP 08U-J06
CS04-8X8 1/2" 1/2" 1/2-14 13/16" 7/8" 809V HY08-08SP 08U-J08
CS04-12X12 3/4" 3/4" 3/4-14 1-1/8" 1-1/4" 1209V HY12-12SP 12U-J12
CS04-16X16 1" 1" 1/11-1/2 1-3/8" 1-3/8" 1609V HY16-16SP 16U-J16

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
