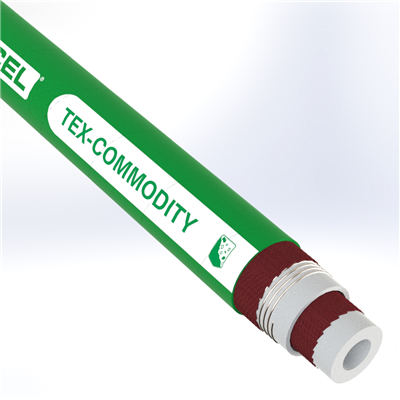

COMM-2.0-100 by Texcel | TEX-COMMODITY Series | FDA Commodity Hose | 2" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Green
Texcel
TEX-COMMODITY Series | FDA Commodity Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $31.42 |
| 40–79 | $28.42 |
| 80+ | $25.07 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | The "original Green Monster", TEX-COMMODITY is the premier material handling hose in the industry. Suitable for abrasive materials, wet or dry. Also used for foodstuffs, flour, plastic pellets, etc. Ideal for sandblast return operations. Tube meets FDA requirements for food and potable water. | Tube: | White, natural gum rubber |
| Cover: | Green, SBR | Reinforcement: | High tensile tire cord plies; dual helix on sizes 2”-4”; single helix on sizes 5”-12” |
| Safety Factor: | 4:1 | Temperature: | -40°F to +190°F |
| Branding: | TEXCEL® TEX-COMMODITY - FDA COMMODITY HOSE XXX PSI W.P. | Features: |
Size 5"-12" are corrugated for extra flexibility Meets FDA requirements Superior abrasion resistance |
| Part Number | Hose ID | Hose OD | Tube Gauge | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./Ft. |
|---|---|---|---|---|---|---|---|
| COMM-2.0-100 | 2" | 2-54/64" | 1/4" | 150 psi | 29 | 5" | 2.60 lbs |
| COMM-2.5-100 | 2-1/2" | 3-26/64" | 1/4" | 150 psi | 29 | 8" | 3.10 lbs |
| COMM-3.0-100 | 3" | 3-56/64" | 1/4" | 150 psi | 29 | 10.5" | 3.62 lbs |
| COMM-4.0-100 | 4" | 4-60/64" | 1/4" | 100 psi | 29 | 12" | 5.57 lbs |
| COMM-5.0-50 | 5" | 5-60/64" | 1/4" | 75 psi | 28 | 13.5" | 7.00 lbs |
| COMM-6.0-50 | 6" | 6-59/64" | 5/16" | 50 psi | 25 | 15" | 7.25 lbs |
| COMM-8.0-50 | 8" | 9-6/64" | 3/8" | 50 psi | 20 | 17" | 10.80 lbs |
| COMM-10.0-25 | 10" | 11-20/64" | 3/8" | 50 psi | 20 | 19" | 15.10 lbs |
| COMM-12.0-25 | 12" | 13-28/64" | 3/8" | 50 psi | 20 | 25" | 18.20 lbs |
