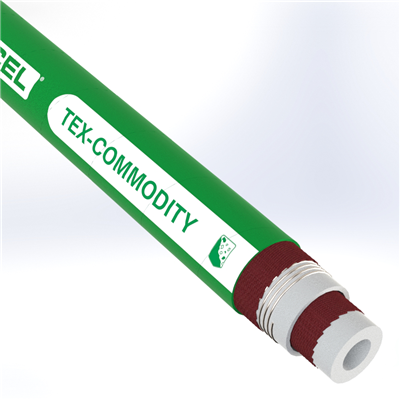

COMM-12.0-25 by Texcel | TEX-COMMODITY Series | FDA Commodity Hose | 12" Hose ID | 50 PSI | 20 in/Hg Vacuum Rated | Green
Buy more, save moreDiscounts applied in cart/checkout.
Material Handling Hose
TEX-COMMODITY FDA Commodity Hose
The “original Green Monster,” TEX-COMMODITY is the premier material handling hose in the industry.
1
What is this hose used for?
Suitable for abrasive materials, wet or dry. Also used for foodstuffs, flour, plastic pellets and similar materials, and ideal for sandblast return operations. The tube meets FDA requirements for food and potable water.
- Abrasive materials (wet or dry)
- Foodstuffs
- Flour
- Plastic pellets
- Sandblast return
2
What are the key specifications?
Tube
White, natural gum rubber
Cover
Green, SBR
Reinforcement
High tensile tire cord plies; dual helix on sizes 2" – 4"; single helix on sizes 5" – 12"
Temperature Range
-40°F to +190°F
Safety Factor
4:1
Branding
TEXCEL® TEX-COMMODITY - FDA COMMODITY HOSE XXX PSI W.P.
3
What are the main product features?
- Meets FDA requirements — for food and potable water.
- Superior abrasion resistance
- Corrugated 5" – 12" sizes — for extra flexibility.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Tube Gauge | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|---|
| COMM-2.0-100 | 2" | 2-54/64" | 1/4" | 150 | 29 | 5" | 2.60 |
| COMM-2.5-100 | 2-1/2" | 3-26/64" | 1/4" | 150 | 29 | 8" | 3.10 |
| COMM-3.0-100 | 3" | 3-56/64" | 1/4" | 150 | 29 | 10.5" | 3.62 |
| COMM-4.0-100 | 4" | 4-60/64" | 1/4" | 100 | 29 | 12" | 5.57 |
| COMM-5.0-50 | 5" | 5-60/64" | 1/4" | 75 | 28 | 13.5" | 7.00 |
| COMM-6.0-50 | 6" | 6-59/64" | 5/16" | 50 | 25 | 15" | 7.25 |
| COMM-8.0-50 | 8" | 9-6/64" | 3/8" | 50 | 20 | 17" | 10.80 |
| COMM-10.0-25 | 10" | 11-20/64" | 3/8" | 50 | 20 | 19" | 15.10 |
| COMM-12.0-25 | 12" | 13-28/64" | 3/8" | 50 | 20 | 25" | 18.20 |
