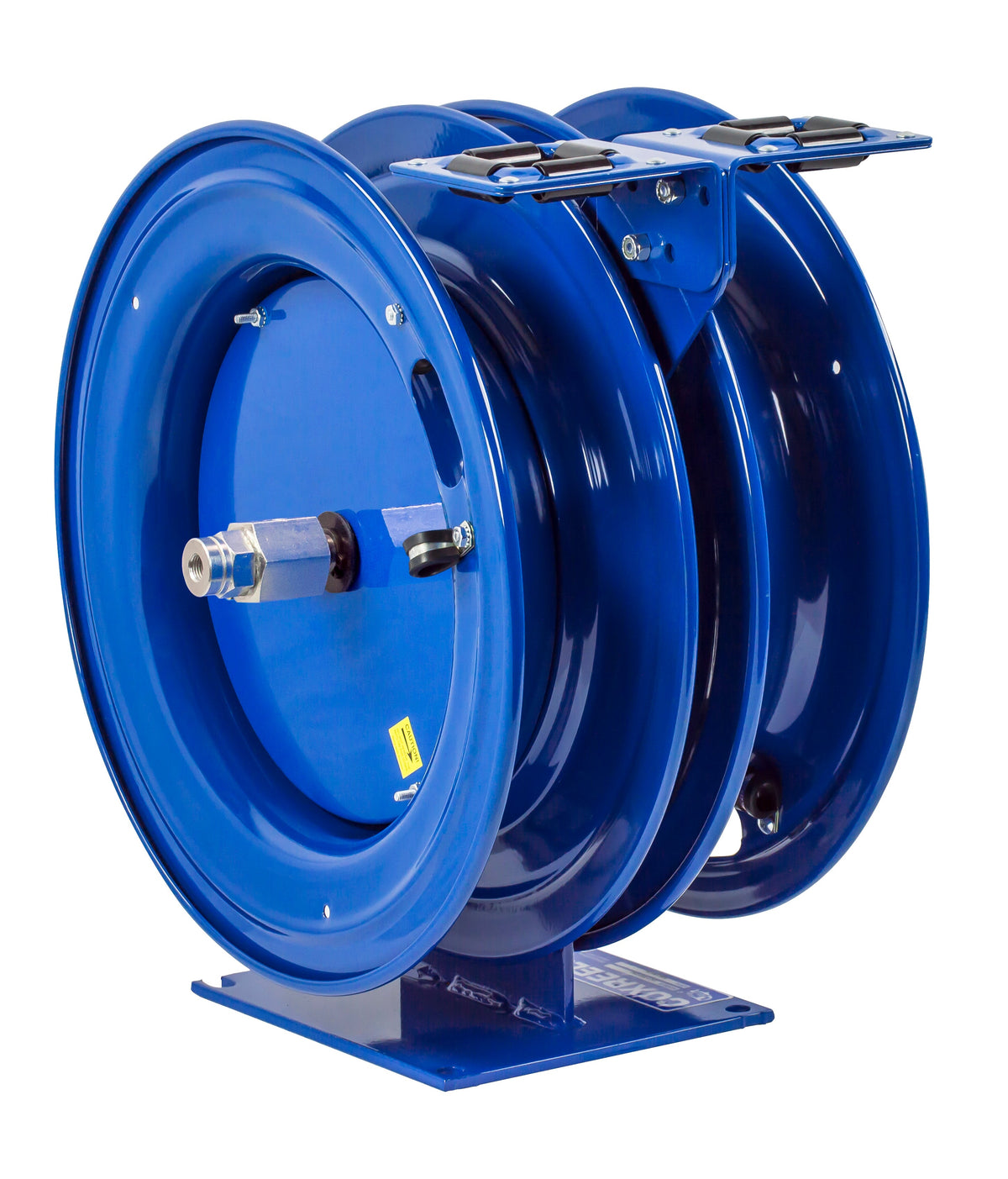

C-HPL-135-135 by Coxreels | C Series | 5,000 PSI Dual Hose Spring Driven Hose Reel | 1/4" Hose ID, 1/4" FNPT Inlet | Steel | 35ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Spring driven hose reel
Coxreels C Series Spring Driven Hose Reels
Steel 2-in-1 spring driven hose reels for air, water, oil and lubrication, grease and hydraulics and dual product delivery, rated to 5,000 PSI. Made in the U.S.A.
1
What is this product used for?
- 300 PSI models — Air, water, dual product delivery.
- 3,000 PSI models — Air, water, oil & lubrication, dual product delivery.
- 5,000 PSI models — Air, water, oil & lubrication, grease & hydraulics, dual product delivery.
2
What are the key specifications?
Construction
Steel, 2-in-1
Swivel
Nitrile seals
Max Temperature
250°F / 150°F depending on hose
Bearings
1" Permanently Lubricated Precision Bearings
Finish
CPC™ powder coat
Mounting Holes
Ø0.5"
3
What are the main product features?
- Swivel — Two external fluid path with machined solid brass 90˚full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Precision coil spring factory tuned and matched to application for longest life cycle and performance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base — Sturdy single expanded pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Compact two reel assembly for dual hose applications, each reel operates independently.
- Multi-Position Guide Arm — Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Inlet | Reel W × H × L (in) |
|---|---|---|---|---|---|
| Low Pressure — PVC hose included | |||||
| C-LP-125-125 | 1/4" | 25 ft | 300 | 1/4" FNPT | 10.5 × 18.625 × 17 |
| C-LP-135-135 | 1/4" | 35 ft | 300 | 1/4" FNPT | 10.5 × 18.625 × 17 |
| C-LP-150-150 | 1/4" | 50 ft | 300 | 1/4" FNPT | 10.5 × 18.625 × 17 |
| C-LP-325-325 | 3/8" | 25 ft | 300 | 3/8" FNPT | 10.5 × 18.625 × 17 |
| C-LP-335-335 | 3/8" | 25 ft | 300 | 3/8" FNPT | 10.5 × 18.625 × 17 |
| C-LP-350-350 | 3/8" | 50 ft | 300 | 3/8" FNPT | 10.5 × 18.625 × 17 |
| C-LP-425-425 | 1/2" | 25 ft | 300 | 1/2" FNPT | 10.5 × 18.625 × 17 |
| Low Pressure — hose not included | |||||
| C-LPL-125-125 | 1/4" | 25 ft | 300 | 1/4" FNPT | 10.5 × 18.625 × 17 |
| C-LPL-135-135 | 1/4" | 35 ft | 300 | 1/4" FNPT | 10.5 × 18.625 × 17 |
| C-LPL-150-150 | 1/4" | 50 ft | 300 | 1/4" FNPT | 10.5 × 18.625 × 17 |
| C-LPL-325-325 | 3/8" | 25 ft | 300 | 3/8" FNPT | 10.5 × 18.625 × 17 |
| C-LPL-335-335 | 3/8" | 35 ft | 300 | 3/8" FNPT | 10.5 × 18.625 × 17 |
| C-LPL-350-350 | 3/8" | 50 ft | 300 | 3/8" FNPT | 10.5 × 18.625 × 17 |
| C-LPL-425-425 | 1/2" | 25 ft | 300 | 1/2" FNPT | 10.5 × 18.625 × 17 |
| Medium Pressure — rubber hose included | |||||
| C-MP-325-325 | 3/8" | 25 ft | 3,000 | 3/8" FNPT | 11.5 × 18.625 × 17 |
| C-MP-335-335 | 3/8" | 35 ft | 3,000 | 3/8" FNPT | 11.5 × 18.625 × 17 |
| C-MP-425-425 | 1/2" | 25 ft | 3,000 | 1/2" FNPT | 11.5 × 18.625 × 17 |
| C-MP-430-430 | 1/2" | 30 ft | 3,000 | 1/2" FNPT | 11.5 × 18.625 × 17 |
| Medium Pressure — hose not included | |||||
| C-MPL-325-325 | 3/8" | 25 ft | 3,000 | 3/8" FNPT | 11.5 × 18.625 × 17 |
| C-MPL-335-335 | 3/8" | 35 ft | 3,000 | 3/8" FNPT | 11.5 × 18.625 × 17 |
| C-MPL-425-425 | 1/2" | 25 ft | 3,000 | 1/2" FNPT | 11.5 × 18.625 × 17 |
| C-MPL-430-430 | 1/2" | 30 ft | 3,000 | 1/2" FNPT | 11.5 × 18.625 × 17 |
| High Pressure — rubber hose included | |||||
| C-HP-125-125 | 1/4" | 25 ft | 5,000 | 1/4" FNPT x2 | 11.5 × 18.625 × 17 |
| C-HP-135-135 | 1/4" | 35 ft | 5,000 | 1/4" FNPT x2 | 11.5 × 18.625 × 17 |
| C-HP-325-325 | 3/8" | 25 ft | 5,000 | 3/8" FNPT | 11.5 × 18.625 × 17 |
| C-HP-330-330 | 3/8" | 30 ft | 5,000 | 3/8" FNPT | 11.5 × 18.625 × 17 |
| High Pressure — hose not included | |||||
| C-HPL-125-125 | 1/4" | 25 ft | 5,000 | 1/4" FNPT | 11.5 × 18.625 × 17 |
| C-HPL-135-135 | 1/4" | 35 ft | 5,000 | 1/4" FNPT | 11.5 × 18.625 × 17 |
| C-HPL-325-325 | 3/8" | 25 ft | 5,000 | 3/8" FNPT | 11.5 × 18.625 × 17 |
| C-HPL-330-330 | 3/8" | 30 ft | 5,000 | 3/8" FNPT | 11.5 × 18.625 × 17 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets — fit every model | ||
| 15724 | EZ-Up "I" or "H" Beam Adapter | |
| 15723 | EZ-Up Bracket | |
| MRT-1 | Overhead Mounting Bracket | |
| 15725 | Swing Bracket | |
| 15721 | Swivel Bracket | |
| Inlet connections | ||
| 5150-1.5 | 18" inlet hose | C-LP/LPL-125-125; C-LP/LPL-135-135; C-LP/LPL-150-150 |
| 5153-1.5 | 18" inlet hose | C-LP/LPL-325-325; C-LP/LPL-335-335; C-LP/LPL-350-350 |
| 5154-1.5 | 18" inlet hose | C-LP/LPL-425-425 |
| 5224-1.5 | 18" inlet hose | C-MP/MPL-325-325; C-MP/MPL-335-335 |
| 5304-1.5 | 18" inlet hose | C-HP/HPL-125-125; C-HP/HPL-135-135 |
| 208 | 90° inlet elbow (brass) | C-LP/LPL-325-325; C-LP/LPL-335-335; C-LP-350-350 |
| 222 | 90° inlet elbow (brass) | C-LP/LPL-425-425 |
| 2085 | 90° inlet elbow (brass) | C-LPL-350-350 |
| 6088 | 90° inlet elbow (brass) | C-LP/LPL-125-125; C-LP/LPL-135-135; C-LP/LPL-150-150 |
| 500 | 90° inlet elbow (steel) | C-MP/MPL-325-325; C-MP/MPL-335-335 |
| 616 | 90° inlet elbow (steel) | C-HP/HPL-125-125; C-HP/HPL-135-135 |
| 617 | 90° inlet elbow (steel) | C-HP/HPL-325-325; C-HP/HPL-330-330 |
| 1671 | 90° inlet elbow (steel) | C-MP/MPL-425-425; C-MP/MPL-430-430 |
| Hose end | ||
| 131 | Hose/cord stop | Hose I.D. 1/4" |
| 131-3 | Hose/cord stop | Hose I.D. 3/8" |
| 131-4 | Hose/cord stop | Hose I.D. 1/2" |
| 10759-1 | Quick disconnect | C-LP/LPL-125-125; C-LP/LPL-135-135; C-LP/LPL-150-150 |
| 10759-2 | Quick disconnect | C-LP/LPL-325-325; C-LP/LPL-335-335; C-LP/LPL-350-350 |
| 237-1 | Spiral hose/cord guard | Every model except C-LP/LPL/MP/MPL-425-425; C-MP/MPL-430-430 |
| 398-1 | Spiral hose/cord guard | Hose I.D. 1/2" |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BVX is -GVX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Hose suffix | |
| -OG | Oil/Grease Resistant |
| -RH | Red EPDM |
| -BH | Black EPDM |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVX | Standard swivel with Viton |
| -BEX | Standard swivel with EPR |
| -BAX | Stainless steel swivel with Nitrile |
| -BBX | Stainless steel swivel with Viton |
| -BCX | Stainless steel swivel with EPR |
| -BGX | BSP swivel with Nitrile |
| -BHX | BSP swivel with Viton |
| -BIX | BSP swivel with EPR |
| -BLX | Stainless steel BSP swivel with Nitrile |
| -BMX | Stainless steel BSP swivel with Viton |
| -BNX | Stainless steel BSP swivel with EPR |
| -BYX | Food grade Brass swivel |
| -BYX | Food grade stainless steel swivel |
| -BZX | Less swivel |
| Other | |
| -BXC | Constant Tension |
| -BXB | Bend Restrictor |
| -BXK / -BXL | Air Tool Kit |
7
Where can I find product documents?
C Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
