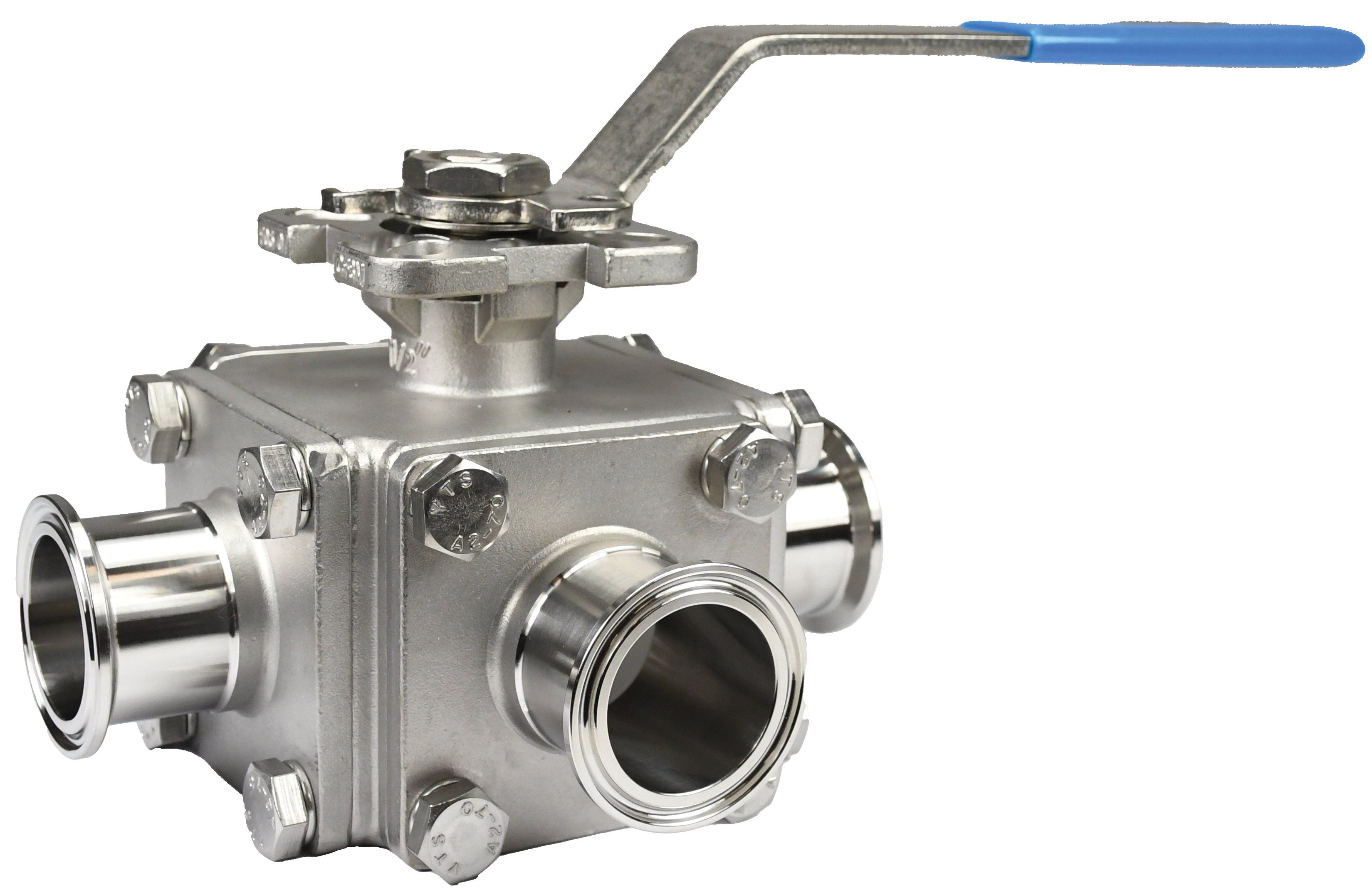

BV3SUTF150C-A Dixon Valve 1-1/2" Sanitary Three-Way "T" Multi-Port Stainless Steel Clamp End Ball Valve - Seat: UHMW

BV3SUTF150C-A Dixon Valve 1-1/2" Sanitary Three-Way "T" Multi-Port Stainless Steel Clamp End Ball Valve - Seat: UHMW

Sale price$1,220.08

Dixon Sanitary Valves
Sanitary Three-Way "T" Multi-Port Stainless Steel Clamp End Ball Valve - Clamp Ends

Seat: UHMW
Buy More, Save More!
Quantity Price Each
4–7 $1,146.88
8–14 $1,098.07
15+ $976.06
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Material(s):
  • Stainless Steel
Seal Material(s):
  • UHMW
Features:
  • Full port design
  • Blow-out proof stem
  • Live-loaded stem packing
  • Lock-out, tag out
  • Port: T Port
Construction:
  • CF8M stainless body, ends and ball.
  • UHMW, Ultra-high molecular weight polyethylene, seat is specified for its low modulus of abrasion and minimal property degradation when exposed to moderate levels of radiation. Ideal for applications where fluorocarbons are not acceptable. Food Grade Material.
  • ISO 5211 mounting pad.
Part Number Size Dimensions
A B C D E F G H Break
Torque		 Pressure
Rating
BV3SUTF150C-A 1/2" 4.6" 2.3" 3.3" 1.7" 4.9" 9mm 36mm 42mm 297 in. lbs. 400 PSI WOG
BV3SUTF300C-A 3" 9.6" 5.1" 6.5" 4.9" 18.3" 22mm 102mm 125mm 1400 in. lbs. 400 PSI WOG

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
