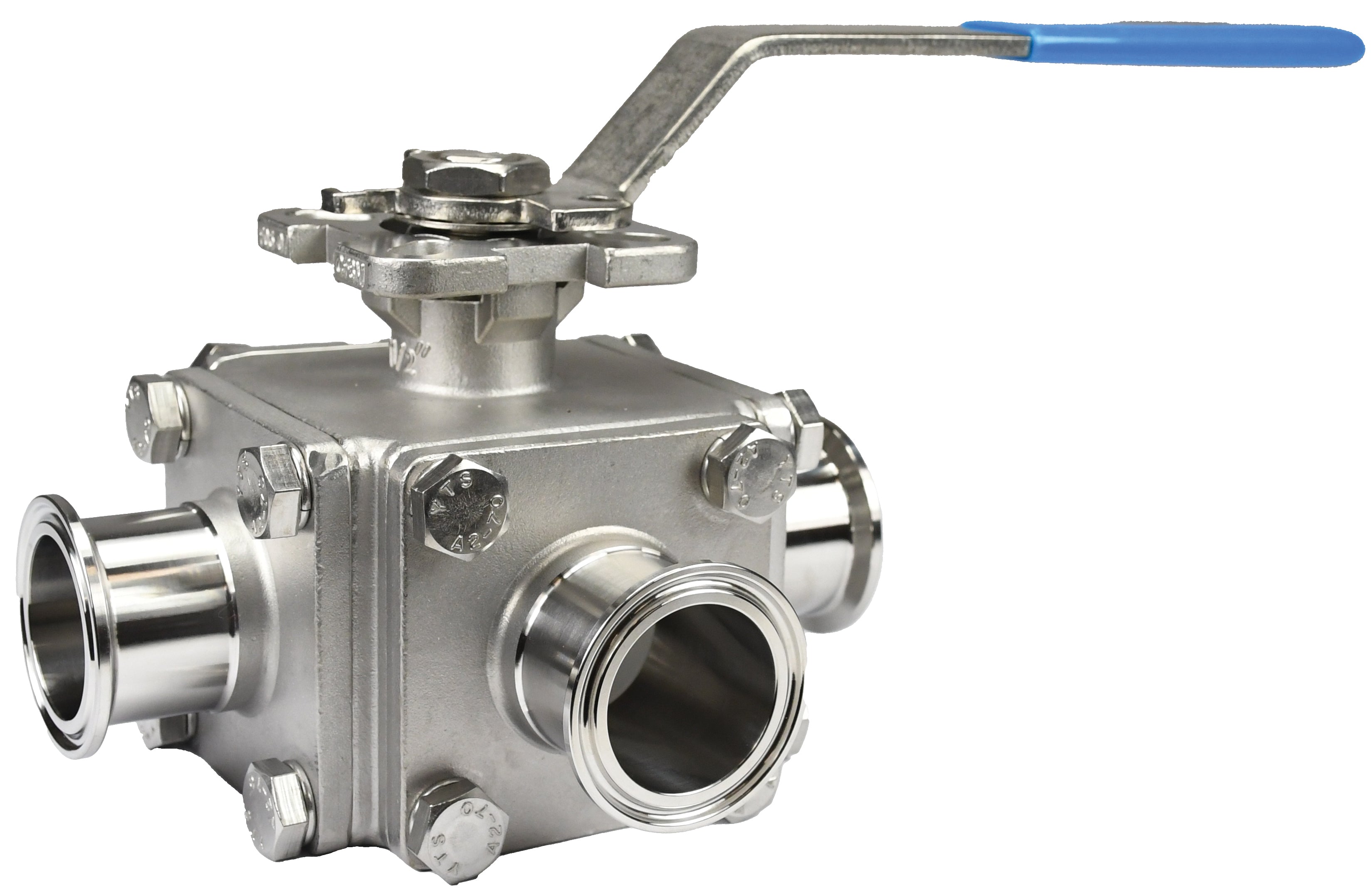

BV3SUTF300C-A Dixon Valve 3" Sanitary Three-Way "T" Multi-Port Stainless Steel Clamp End Ball Valve - Seat: UHMW
Dixon

BV3SUTF300C-A Dixon Valve 3" Sanitary Three-Way "T" Multi-Port Stainless Steel Clamp End Ball Valve - Seat: UHMW

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Full port design
  • Blow-out proof stem
  • Live-loaded stem packing
  • Lock-out, tag out
  • Port: T Port
Construction:
  • CF8M stainless body, ends and ball.
  • UHMW, Ultra-high molecular weight polyethylene, seat is specified for its low modulus of abrasion and minimal property degradation when exposed to moderate levels of radiation. Ideal for applications where fluorocarbons are not acceptable. Food Grade Material.
  • ISO 5211 mounting pad.
Part Number Size Dimensions
A B C D E F G H Break
Torque		 Pressure
Rating
BV3SUTF150C-A 1/2" 4.6" 2.3" 3.3" 1.7" 4.9" 9mm 36mm 42mm 297 in. lbs. 400 PSI WOG
BV3SUTF300C-A 3" 9.6" 5.1" 6.5" 4.9" 18.3" 22mm 102mm 125mm 1400 in. lbs. 400 PSI WOG
