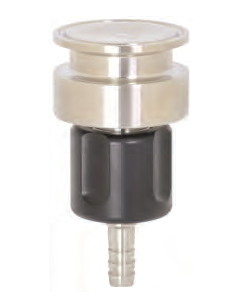

BSVICV-N050050 Dixon Valve Inline Sample Valve - 1/2" Valve Size - 1/2" Barb Size
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
What are the Features?
- Standard finish to 20 Ra ID / 32 Ra OD
- Fully traceable (material test reports)
- Minimal internal dead-leg area
- Temperature rating: 300°F at 200 PSI
How is it Constructed?
- All 316L stainless wetted part construction
- FKM O-ring
- Virgin PTFE seat for positive closure
 |
|||
|---|---|---|---|
| Part Number | Valve Size | Barb Ø A |
Ferrule Ø B |
| BSVICV-N050025 | 1/2" | 1/4" | 0.99" |
| BSVICV-N050050 | 1/2" | 1/2" | 0.99" |
| BSVICV-N075025 | 3/4" | 1/4" | 0.99" |
| BSVICV-N150375 | 1-1/2" | 3/8" | 1.98" |
| BSVICV-N200050 | 2" | 1/2" | 2.52" |
