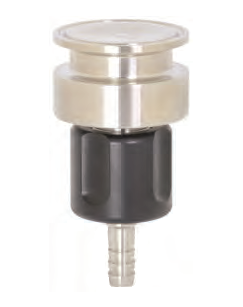

BSVICV-N150375 Dixon Valve Inline Sample Valve - 1-1/2" Valve Size - 3/8" Barb Size
Dixon

BSVICV-N150375 Dixon Valve Inline Sample Valve - 1-1/2" Valve Size - 3/8" Barb Size

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Standard finish to 20 Ra ID / 32 Ra OD
  • Fully traceable (material test reports)
  • Minimal internal dead-leg area
  • Temperature rating: 300°F at 200 PSI
Construction:
  • All 316L stainless wetted part construction
  • FKM O-ring
  • Virgin PTFE seat for positive closure
Part Number Valve Size Barb Ø
A		 Ferrule Ø
B
BSVICV-N050025 1/2" 1/4" 0.99"
BSVICV-N050050 1/2" 1/2" 0.99"
BSVICV-N075025 3/4" 1/4" 0.99"
BSVICV-N150375 1-1/2" 3/8" 1.98"
BSVICV-N200050 2" 1/2" 2.52"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
