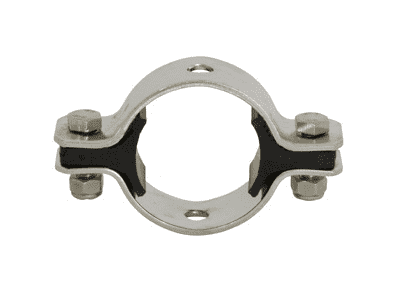

B24RPH-G150 Dixon Valve 304 Stainless Steel Sanitary Round Tube Hanger with Nitrile Inserts - 1-1/2" Tube OD
Dixon Sanitary Tube Hangers - Round Tube Hangers with Nitrile Inserts - 304 Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $16.64 |
| 40–79 | $15.05 |
| 80+ | $13.28 |
Discounts applied in cart/checkout.
Product Data:
| Features: | |||
|---|---|---|---|
|
|||
| Safety Notes: | |||
|
| Part Number | Tube OD | Dimensions  |
Weight (Lbs.) | |
|---|---|---|---|---|
| A | B | |||
| B24RPH-G50 | 1/2" | 2.750" | 1.125" | 0.1530 |
| B24RPH-G75 | 3/4" | 2.750" | 1.125" | 0.2950 |
| B24RPH-G100 | 1" | 3.310" | 1.500" | 0.3900 |
| B24RPH-G150 | 1-1/2" | 3.810" | 2.000" | 0.4845 |
| B24RPH-G200 | 2" | 4.250" | 2.562" | 0.5100 |
| B24RPH-G250 | 2-1/2" | 5.000" | 3.000" | 0.6425 |
| B24RPH-G300 | 3" | 5.500" | 3.562" | 0.6700 |
| B24RPH-G400 | 4" | 6.500" | 4.688" | 0.8345 |
