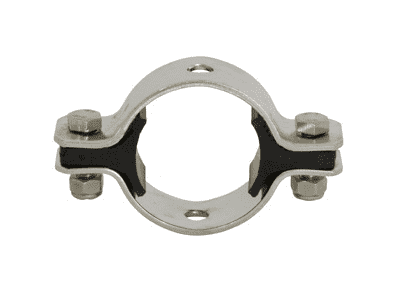

B24RPH-G250 Dixon Valve 304 Stainless Steel Sanitary Round Tube Hanger with Nitrile Inserts - 2-1/2" Tube OD
Dixon

B24RPH-G250 Dixon Valve 304 Stainless Steel Sanitary Round Tube Hanger with Nitrile Inserts - 2-1/2" Tube OD

Sale price$21.16

Dixon Sanitary Tube Hangers - Round Tube Hangers with Nitrile Inserts - 304 Stainless Steel

Product Data:
Features:
  • Nitrile inserts operating temperatures up to 230 deg. F.
Safety Notes:
  • Proper Installation: straight sections need support every 10 ft., each side of every valve (as close as possible to the connection) needs support, support each change of directions.
Part Number Tube OD Dimensions
Weight (Lbs.)
A B
B24RPH-G50 1/2" 2.750" 1.125" 0.1530
B24RPH-G75 3/4" 2.750" 1.125" 0.2950
B24RPH-G100 1" 3.310" 1.500" 0.3900
B24RPH-G150 1-1/2" 3.810" 2.000" 0.4845
B24RPH-G200 2" 4.250" 2.562" 0.5100
B24RPH-G250 2-1/2" 5.000" 3.000" 0.6425
B24RPH-G300 3" 5.500" 3.562" 0.6700
B24RPH-G400 4" 6.500" 4.688" 0.8345

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
