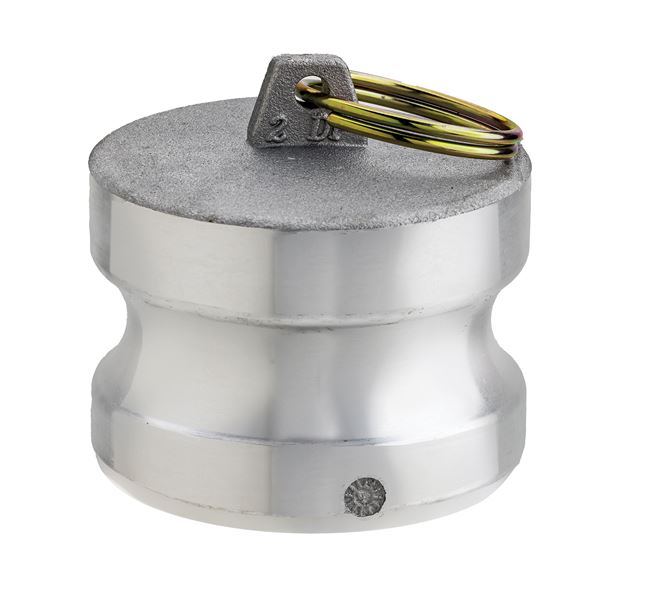

AL-DP1000 by Kuriyama | AL-DP Series | Part DP | Cam & Groove Dust Plug | 10" Size | Aluminum

AL-DP1000 by Kuriyama | AL-DP Series | Part DP | Cam & Groove Dust Plug | 10" Size | Aluminum

Sale price$235.86

Kuriyama of America Inc.
Cam & Groove (Camlock) Dust Plug | AL-DP Series | Part DP | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Buy More, Save More!
Quantity Price Each
5–19 $221.71
20–59 $200.48
60+ $176.90
Discounts applied in cart/checkout.

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Kuriyama offers two 8" coupling styles in aluminum.*
  • Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
AL-DP050 1/2" 250 PSI B211 Grade 6063 0.07 lbs
AL-DP075 3/4" 250 PSI B85 Grade 383 0.08 lbs
AL-DP100 1" 250 PSI B85 Grade 383 0.10 lbs
AL-DP125 1-1/4" 250 PSI B108-92 356 0.18 lbs
AL-DP150 1-1/2" 250 PSI B85 Grade 383 0.25 lbs
AL-DP200 2" 250 PSI B85 Grade 383 0.38 lbs
AL-DP250 2-1/2" 150 PSI B85 Grade 383 0.54 lbs
AL-DP300 3" 150 PSI B85 Grade 383 0.74 lbs
AL-DP400 4" 150 PSI B85 Grade 383 1.22 lbs
AL-DP500 5" 75 PSI B108-92 356 1.46 lbs
AL-DP600 6" 75 PSI B85 Grade 383 2.53 lbs
AL-DP800 8" 50 PSI B108-92 356 4.04 lbs
AL-DP1000 10" 50 PSI B26, Grade 713 5.36 lbs
HDAL-DP801 8" 50 PSI B26, Grade 713 5.00 lbs

* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-DP800. If the measurement is more than 9" it is HDAL-DP801.

Product Data:

Series:
  • AL-DP Series
MAWP:

50

Cam & Groove Type:

Type DP
