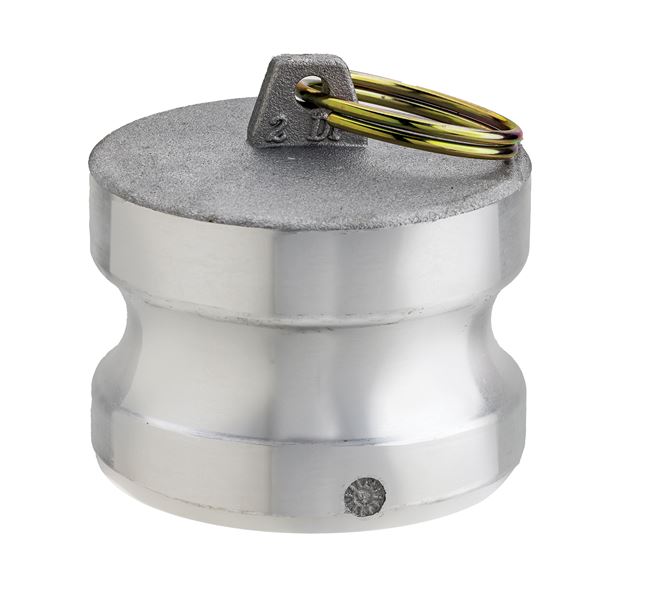

AL-DP150 by Kuriyama | AL-DP Series | Part DP | Cam & Groove Dust Plug | 1-1/2" Size | Aluminum
Minimum Order Quantity: 5 Units
Kuriyama of America Inc.
Cam & Groove (Camlock) Dust Plug | AL-DP Series | Part DP | Aluminum
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $10.14 |
| 40–79 | $9.17 |
| 80+ | $8.09 |
Discounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Kuriyama offers two 8" coupling styles in aluminum.*
- Aluminum alloy specially designed for high tensile strength and impact resistance.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
| Part Number | Size (in) |
PSI Rating at 70°F |
ASTM Specification |
Weight Each (lbs) |
|---|---|---|---|---|
| AL-DP050 | 1/2" | 250 PSI | B211 Grade 6063 | 0.07 lbs |
| AL-DP075 | 3/4" | 250 PSI | B85 Grade 383 | 0.08 lbs |
| AL-DP100 | 1" | 250 PSI | B85 Grade 383 | 0.10 lbs |
| AL-DP125 | 1-1/4" | 250 PSI | B108-92 356 | 0.18 lbs |
| AL-DP150 | 1-1/2" | 250 PSI | B85 Grade 383 | 0.25 lbs |
| AL-DP200 | 2" | 250 PSI | B85 Grade 383 | 0.38 lbs |
| AL-DP250 | 2-1/2" | 150 PSI | B85 Grade 383 | 0.54 lbs |
| AL-DP300 | 3" | 150 PSI | B85 Grade 383 | 0.74 lbs |
| AL-DP400 | 4" | 150 PSI | B85 Grade 383 | 1.22 lbs |
| AL-DP500 | 5" | 75 PSI | B108-92 356 | 1.46 lbs |
| AL-DP600 | 6" | 75 PSI | B85 Grade 383 | 2.53 lbs |
| AL-DP800 | 8" | 50 PSI | B108-92 356 | 4.04 lbs |
| AL-DP1000 | 10" | 50 PSI | B26, Grade 713 | 5.36 lbs |
| HDAL-DP801 | 8" | 50 PSI | B26, Grade 713 | 5.00 lbs |
* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-DP800. If the measurement is more than 9" it is HDAL-DP801.
Product Data:
Series:
MAWP:
250
Cam & Groove Type:
Type DP
Ends Configuration:
Material(s):
