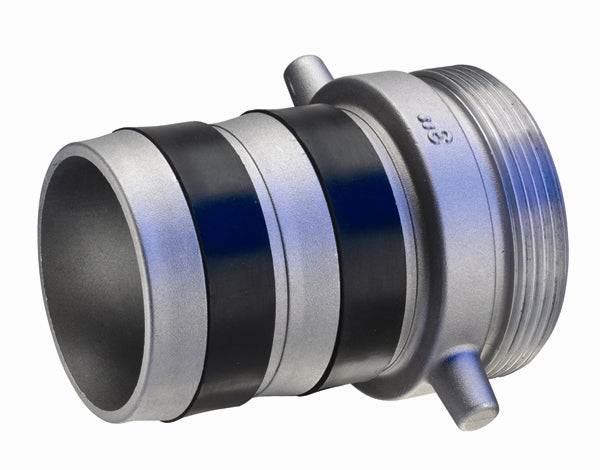

ABM-LF200 by Kuriyama | EZ-Seal™ Leak Resistant Pin Lug Fitting | ABM-LF Series | 2" Size | Shank with Male NPSM Threads | Aluminum

ABM-LF200 by Kuriyama | EZ-Seal™ Leak Resistant Pin Lug Fitting | ABM-LF Series | 2" Size | Shank with Male NPSM Threads | Aluminum

Minimum Order Quantity: 5 Units

Sale price$10.30
Buy more, save moreDiscounts applied in cart/checkout.
Applications:
  • Versatile threaded hose connectors designed for suction and discharge applications.
Features:
  • EZ-Seal™ fittings come with rubber seals on the shanks to help prevent leakage.
  • Male ends supplied with NPSM threads (National Pipe Straight Mechanical).
  • Cylindrical studs or "pins" positioned on the outside rim of the coupling allowing the use of a spanner wrench to tighten the coupling.
  • Note: To insure proper sealing attach band clamps directly over rubber seals during assembly procedure.
Construction:
  • ASTM B108-92 356 aluminum alloy.
  • ASTM B283 Grade 37700 brass alloy.
ABF-LF Series | Aluminum Shank with Female Brass Swivel Nut
Part Number Size
(in)		 PSI Rating
at 70°F
ABF-LF150 1-1/2" 75 PSI
ABF-LF200 2" 75 PSI
ABF-LF300 3" 50 PSI
ABF-LF400 4" 50 PSI
ABM-LF Series | Shank with Male NPSM Threads
Part Number Size
(in)		 PSI Rating
at 70°F
ABM-LF150 1-1/2" 75 PSI
ABM-LF200 2" 75 PSI
ABM-LF300 3" 50 PSI
ABM-LF400 4" 50 PSI

Additional Product Data:

Brand:
  • EZ-Seal
Series:
  • ABM-LF Series
Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
