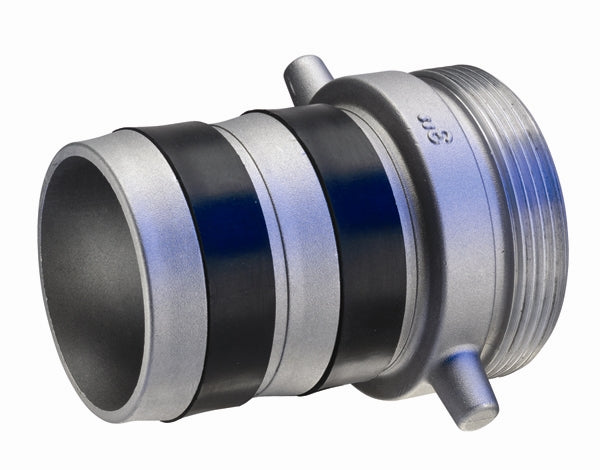

ABM-LF300 by Kuriyama | EZ-Seal™ Leak Resistant Pin Lug Fitting | ABM-LF Series | 3" Size | Shank with Male NPSM Threads | Aluminum

ABM-LF300 by Kuriyama | EZ-Seal™ Leak Resistant Pin Lug Fitting | ABM-LF Series | 3" Size | Shank with Male NPSM Threads | Aluminum

Sale price$19.20

Kuriyama
EZ-Seal™ Leak Resistant Pin Lug Fitting | ABM-LF Series | Shank with Male NPSM Threads

Has Rubber seals on the hose barb to help prevent leakage.

Versatile threaded hose connectors designed for suction and discharge applications.
Buy More, Save More!
Quantity Price Each
10–39 $18.05
40–79 $16.32
80+ $14.40
Discounts applied in cart/checkout.

Product Data:

Brand:
  • EZ-Seal
Series:
  • ABM-LF Series
Shape:

Straight
Applications:
  • Versatile threaded hose connectors designed for suction and discharge applications.
Features:
  • EZ-Seal™ fittings come with rubber seals on the shanks to help prevent leakage.
  • Male ends supplied with NPSM threads (National Pipe Straight Mechanical).
  • Cylindrical studs or "pins" positioned on the outside rim of the coupling allowing the use of a spanner wrench to tighten the coupling.
  • Note: To insure proper sealing attach band clamps directly over rubber seals during assembly procedure.
Construction:
  • ASTM B108-92 356 aluminum alloy.
  • ASTM B283 Grade 37700 brass alloy.
ABF-LF Series | Aluminum Shank with Female Brass Swivel Nut
Part Number Size
(in)		 PSI Rating
at 70°F
ABF-LF150 1-1/2" 75 PSI
ABF-LF200 2" 75 PSI
ABF-LF300 3" 50 PSI
ABF-LF400 4" 50 PSI
ABM-LF Series | Shank with Male NPSM Threads
Part Number Size
(in)		 PSI Rating
at 70°F
ABM-LF150 1-1/2" 75 PSI
ABM-LF200 2" 75 PSI
ABM-LF300 3" 50 PSI
ABM-LF400 4" 50 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
