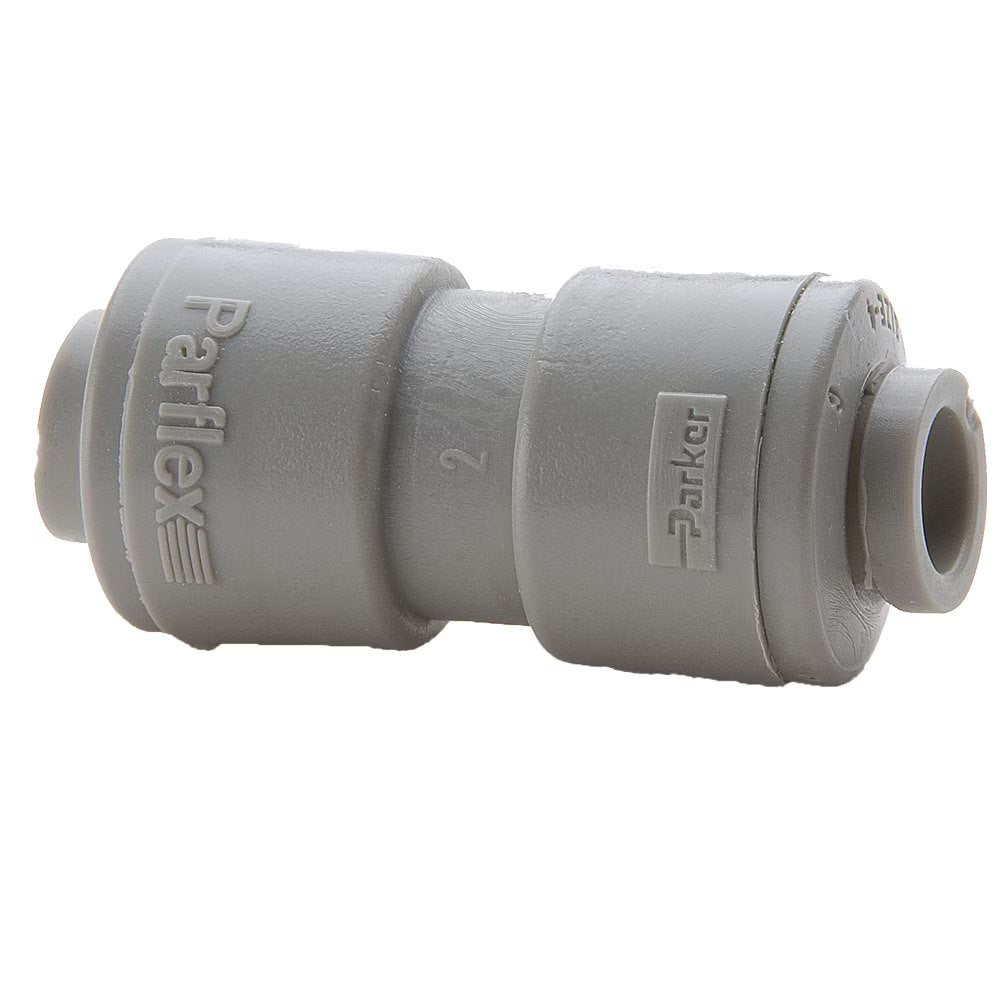

A8UC6-MG by Parker | TrueSeal™ Tube to Tube Union Fitting | 1/2"-3/8" Push-to-Connect | 1.90" Length | Straight | Gray | Acetal

A8UC6-MG by Parker | TrueSeal™ Tube to Tube Union Fitting | 1/2"-3/8" Push-to-Connect | 1.90" Length | Straight | Gray | Acetal

Sale price$3.33

by Parker Hannifin
TrueSeal™ Fittings:UC - Union Connector
Buy More, Save More!
Quantity Price Each
20–39 $3.13
40–79 $2.83
80+ $2.50
Discounts applied in cart/checkout.

Product Data:

Brand:
  • TrueSeal™
Series:
  • UC Series
Shape:

Straight
Product Features
  • Acetal and Black Polypropylene with EPDM seals and metal gripping collet
  • White Polypropylene with EPDM seals and plastic gripping collet
  • Black Kynar with Fluorocarbon (FKM) seals
  • Stainless or thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • NSF/ANSI/CAN 61 options
Markets & Applications
  • Food, Water, Chemical, Filtration
  • Air, Soft Drinks, Beer, Wine, Dyes, Vacuum
Pressure
  • Acetal/Kynar: Up to 300 PSI
  • Polypropylene: Up to 150 PSI
Temperature
  • Acetal: -20° to +180°F
  • Poly: 0° to +225°F
  • Kynar: 0° to +275°F
Materials
  • Acetal
  • Polypropylene
  • Kynar
  • EPDM / FKM
Compatible Tubing
  • Polyethylene
  • Polypropylene**
  • Nylon**
  • Vinyl+
  • Fluoropolymer**
  • Polyurethane+
  • *Kynar®

* Arkema trademark
** Metal gripper required
+ Tube support required

Gray Acetal EPDM Seal Black PPL EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Nom. Tube O.D. L Flow Diameter (D)
A4UC4-MG PPB4UC4-MG PP4UC4 FB4UC4-HBLK 1/4" 1.49" .175"
A5UC4-MG - - - 5/16"-1/4" 1.70" .175"
A5UC5-MG - - FB5UC5-HBLK 5/16" 1.70" .188"
A6UC4-MG PPB6UC4-MG PP6UC4 FB6UC4-HBLK 3/8"-1/4" 1.70" .175"
A6UC5-MG - - - 3/8"-5/16" 1.70" .188"
A6UC6-MG PPB6UC6-MG PP6UC6 FB6UC6-HBLK 3/8" 1.70" .188"
A8UC5-MG - - - 1/2"-5/16" 1.90" .188"
A8UC6-MG PPB8UC6-MG PP8UC6 FB8UC6-HBLK 1/2"-3/8" 1.90" .250"
A8UC8-MG - PP8UC8 FB8UC8-HBLK 1/2" 1.91" .375"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
