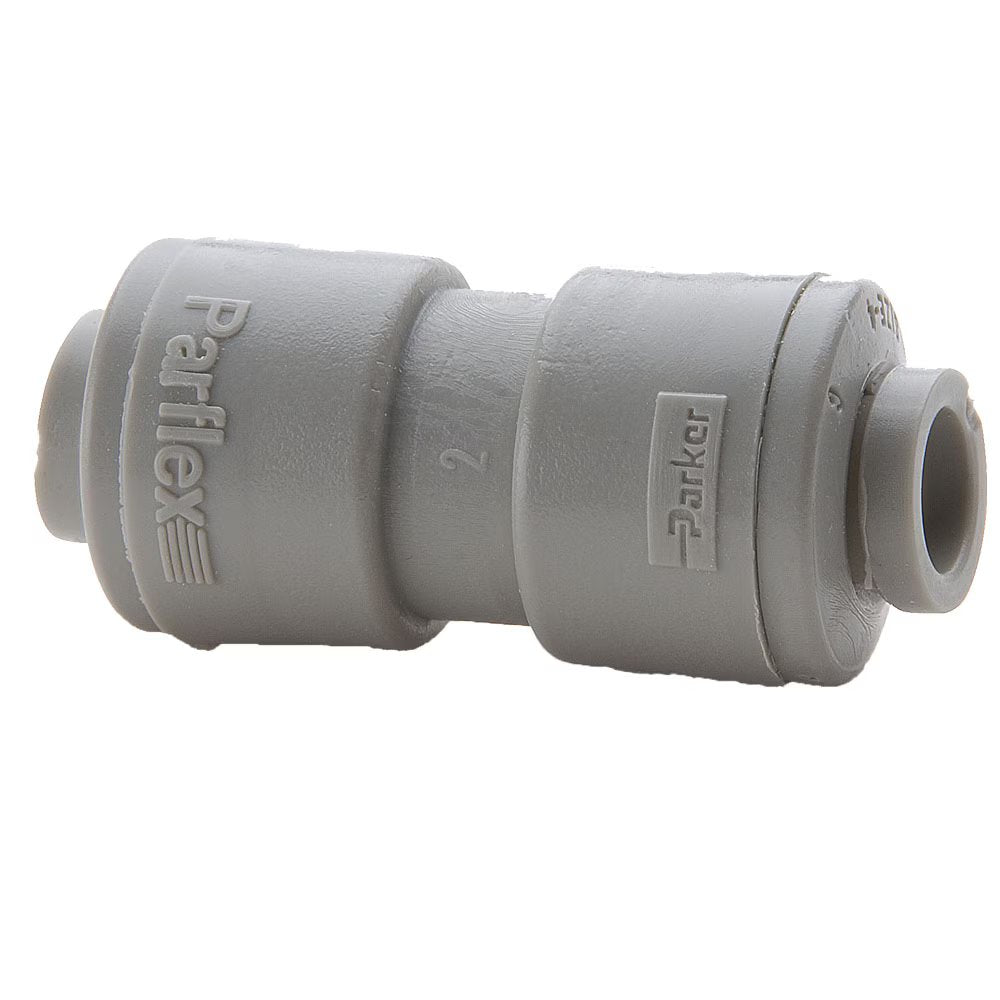

A6UC4-MG by Parker | TrueSeal™ Tube to Tube Union Fitting | 3/8"-1/4" Push-to-Connect | 1.70" Length | Straight | Gray | Acetal

A6UC4-MG by Parker | TrueSeal™ Tube to Tube Union Fitting | 3/8"-1/4" Push-to-Connect | 1.70" Length | Straight | Gray | Acetal

Sale price$2.42

by Parker Hannifin
TrueSeal™ Fittings:UC - Union Connector
Buy More, Save More!
Quantity Price Each
20–39 $2.27
40–79 $2.06
80+ $1.82
Discounts applied in cart/checkout.

Product Data:

Brand:
  • TrueSeal™
Series:
  • UC Series
Shape:

Straight
Product Features
  • Acetal and Black Polypropylene with EPDM seals and metal gripping collet
  • White Polypropylene with EPDM seals and plastic gripping collet
  • Black Kynar with Fluorocarbon (FKM) seals
  • Stainless or thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • NSF/ANSI/CAN 61 options
Markets & Applications
  • Food, Water, Chemical, Filtration
  • Air, Soft Drinks, Beer, Wine, Dyes, Vacuum
Pressure
  • Acetal/Kynar: Up to 300 PSI
  • Polypropylene: Up to 150 PSI
Temperature
  • Acetal: -20° to +180°F
  • Poly: 0° to +225°F
  • Kynar: 0° to +275°F
Materials
  • Acetal
  • Polypropylene
  • Kynar
  • EPDM / FKM
Compatible Tubing
  • Polyethylene
  • Polypropylene**
  • Nylon**
  • Vinyl+
  • Fluoropolymer**
  • Polyurethane+
  • *Kynar®

* Arkema trademark
** Metal gripper required
+ Tube support required

Gray Acetal EPDM Seal Black PPL EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Nom. Tube O.D. L Flow Diameter (D)
A4UC4-MG PPB4UC4-MG PP4UC4 FB4UC4-HBLK 1/4" 1.49" .175"
A5UC4-MG - - - 5/16"-1/4" 1.70" .175"
A5UC5-MG - - FB5UC5-HBLK 5/16" 1.70" .188"
A6UC4-MG PPB6UC4-MG PP6UC4 FB6UC4-HBLK 3/8"-1/4" 1.70" .175"
A6UC5-MG - - - 3/8"-5/16" 1.70" .188"
A6UC6-MG PPB6UC6-MG PP6UC6 FB6UC6-HBLK 3/8" 1.70" .188"
A8UC5-MG - - - 1/2"-5/16" 1.90" .188"
A8UC6-MG PPB8UC6-MG PP8UC6 FB8UC6-HBLK 1/2"-3/8" 1.90" .250"
A8UC8-MG - PP8UC8 FB8UC8-HBLK 1/2" 1.91" .375"
